EXAIR Super Air Nozzle saves 80 SCFM while maintaining performance

This has led them to the next area of their plant where they had more homemade blow offs, this time in the form of a homemade nozzle.

They were using a capped off 3/8" schedule 40 pipe with a 9/64" hole in each cap. This air is used to de-pan products like rolls from the baking pans after they have been baked. The customer successfully installed (10) Model 1100 1/4" Super Air Nozzles to replace the existing setups.

Estimated air savings based upon hole size and compressed air pressure was 8 SCFM per nozzle for a total air savings of 80 SCFM or approximately 20 HP worth of air compressor load.

By implementing the 1100 Super Air Nozzles, this customer was able to save $1.54 per hour, $12.32 per 8 hour shift, and $9,240.00 per 6,000 hour year. For more information on the 1100 Super Air Nozzle, please click here.

Some accessories that may be coupled with model 1100 Super Air Nozzles are:

• EXAIR Swivel Fittings, which make it easy to adjust the aim of the Air Nozzles - more...

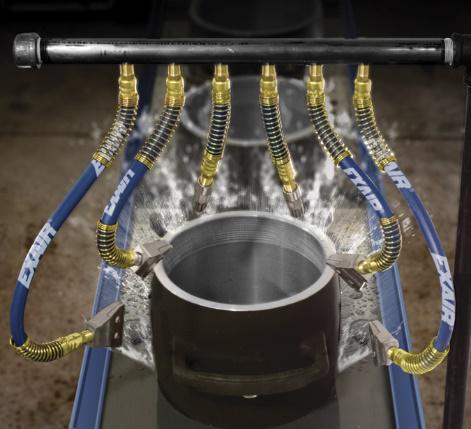

• EXAIR Flexible Stay Set Hoses for applications where frequent repositioning of the Air Nozzle is required - more...
