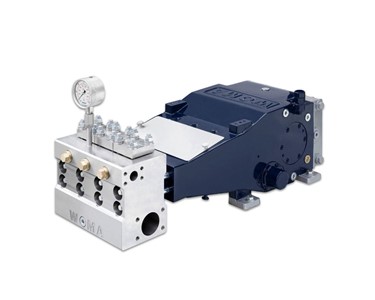

Abrasive Resistant Pumps | ARP Series - 150 ARP Get latest price

Read more...

To contact WOMA Australia about Abrasive Resistant Pumps | ARP Series - 150 ARP use Get a quote.

The ARP-series has operating pressures up to 400 bar and nominal flow rates up to approx. 1,680 l/min.

A special feature of this series is its high reliability even when conveying media contaminated with granular or fibrous solids up to a solids concentration of 3,000 mg/l and a grain size of up to 300 μm. This series is particularly suitable for sewer and pipe cleaning, as well as descaling in the steel industry.

The pump head of the ARP series up to gear size 250 can be ordered as a cost-effective cast variant or as a robust NIRO variant. On request, the use of super duplex steels can also be tested for maximum resistance (deviation of technical data may apply).

On request, an ATEX version is also available.

Technical data

Weight approx. 325 kg (GGG pump head) / 390 kg (NIRO pump head)

Inlet pressure connection GGG pump head IG 3“ / NIRO pump head 3,000 psi SAE 3“, hole pattern M16; 106.4 x 61.9

Pressure connection GGG pump head IG 1 ¼“ / NIRO pump head 6,000 psi SAE 1 ¼“, hole pattern M14; 66.7 x 31.8

Cooling water connection IG 1“

Crankshaft max. 507 rpm, min. depends on operation parameters

Drive shaft diameter 50 mm k6, feather key DIN 6885 Sheet 1, A14 x 9 x 72

Torque at drive shaft max. 676 Nm

Moment of inertia J i = 2.96 0.042 kgm² / i = 3.69 0.030 kgm² / i = 4.57 0.022 kgm²

Centrifugal moment GD² i = 2.96 1.66 Nm² / i = 3.69 1.17 Nm² / i = 4.57 0.86 Nm²

Inlet pressure min. 1.5 bar, max. 5.0 bar

Pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C, max. +45 °C (higher temperatures on request)

Flow inlet requirement min. 1.5x nominal feed rate of the pump, dependent on the conversion set

Emission sound pressure level >80 dB(A), according to DIN EN ISO 11200

Oil capacity of transmission end approx. 9 l

Oil viscosity ISO VG under DIN 51517-2 or -3, 320 mm²/s

Oil pressure lubrication 2.5–5.0 bar (optional / performance related)

Oil pressure set value overflow valve 5.0 bar (optional / performance related)

Oil filter fineness 0.025 mm (optional / performance related)

Oil temperature max. 80 °C, set value 60–70 °C

Heat exchanger cooling water requirement approx. 5–10 l/min

Heat exchanger cooling water temperature min. +5 °C, max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar, max. 10 bar
