Key Takeaways
- Price range: New jib cranes in Australia cost $3,000-$50,000+ depending on type, capacity and boom length (2026 pricing). Custom-engineered units for heavy-duty applications can exceed $80,000.
- Most common configuration: Free-standing pillar-mounted jib cranes with 0.5-2 tonne capacity and 3-6 m boom length account for the majority of Australian workshop and factory installations.
- Rotation arc: Wall-mounted jibs rotate 180 degrees. Free-standing and pillar-mounted jibs rotate up to 360 degrees - confirm your required arc before specifying.
- If your lifting is localised to a single workstation or machine bay: specify a jib crane. If your lifting spans an entire building bay or production line: an overhead crane is the correct specification.
- Installation: Floor-mounted jibs require a reinforced concrete foundation engineered to the crane's rated capacity. Wall-mounted jibs require structural assessment of the mounting surface.
- Compliance: Jib cranes must comply with AS 1418.1 and AS 2550.1. Annual inspection by a competent person is mandatory.
Jib Crane Buying Guide Australia 2026: Types, Capacities, Installation and Supplier Evaluation for Workshop and Factory Lifting

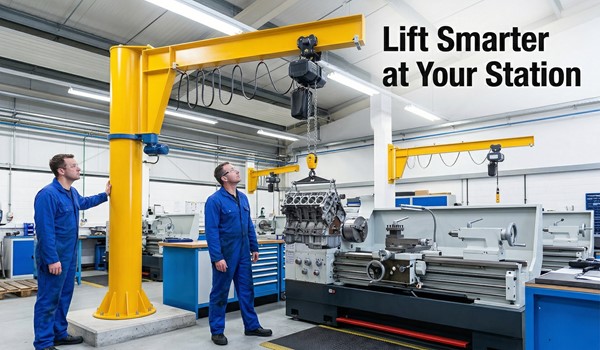

A jib crane is a fixed lifting device with a horizontal boom (jib) that rotates around a vertical mast or wall mounting to lift and position loads within a defined arc. Australian manufacturing, engineering, maintenance and warehousing operations use jib cranes to eliminate manual handling at individual workstations - reducing injury risk and improving cycle time at loading bays, machine tools, assembly stations and maintenance pits. With Safe Work Australia continuing to tighten manual handling enforcement in NSW, VIC and QLD, jib crane installations are increasing across small and mid-size facilities that previously relied on hand lifting or mobile equipment.
This guide covers configuration, specifications and compliance requirements for purchasing. Get quotes for jib cranes from verified Australian suppliers on IndustrySearch to compare pricing across types and capacities.
Operations where jib cranes are standard equipment:
- Manufacturing and engineering workshops - machine loading, assembly, parts handling
- Warehouses and logistics hubs - loading dock stations, pallet breakdown bays
- Maintenance workshops - engine and component removal, heavy tool handling
- Construction prefabrication yards - steel and concrete element placement
Step 1: Choose Your Configuration
Before costing anything, confirm which mounting type suits your facility layout and lifting requirement. Your choice here sets both the price bracket and the installation scope.
| Type | Rotation / Capacity | Best For |
|---|---|---|
| Free-standing pillar jib | 270-360 degrees / 0.25-5 t | Open floor areas, machine bays, loading docks without structural walls |
| Wall-mounted jib | 180 degrees / 0.25-2 t | Workstations against walls, space-constrained bays, no floor space for a pillar |
| Mast-style (floor to ceiling) | 360 degrees / 0.25-2 t | Lighter loads where no foundation is available - braced between floor and ceiling |
| Articulating jib | 360 degrees / 0.1-0.5 t | Precision placement at assembly benches, ergonomic tool handling, cleanroom applications |
If you need to cover a full circular area around the crane, specify free-standing pillar. If the workstation is against a wall and floor space is limited, specify wall-mounted.
Free-standing pillar jibs require a reinforced concrete foundation typically 1.0-1.5 m deep depending on rated capacity. Foundation cost adds $2,000-$8,000 to the installation. They deliver the widest rotation arc and highest capacity range.
Wall-mounted jibs eliminate the floor footprint entirely but require a structural wall or column rated to handle the crane's moment load. A structural engineer must assess the mounting surface before installation - budget $500-$1,500 for the assessment.
Step 2: Evaluate the Key Specifications
With your mounting type confirmed, these are the specs that determine whether a given model fits your lifting task.
| Specification | Typical Range | Buyer Consideration |
|---|---|---|
| Safe working load (SWL) | 0.1-5 tonnes | Rate for your heaviest single lift plus 20% margin. SWL reduces at full boom extension |
| Boom length (outreach) | 2-8 m | Must cover the full working radius from the mast to the furthest pickup or placement point |
| Rotation arc | 180-360 degrees | Map your workflow - do loads need to swing from one side of the station to the other? |
| Under-boom height | 2-6 m | Must clear the tallest load plus the hoist and rigging height. Measure before ordering |
| Hoist type | Manual chain / electric chain / air hoist | Electric chain hoists suit repetitive lifting. Manual hoists are cheaper for occasional use |
| Slewing drive | Manual / motorised | Motorised slewing adds $2,000-$6,000 but reduces operator fatigue on high-cycle stations |
The most common mistake is undersizing the boom length. A jib crane with a 3 m boom cannot serve a workstation where the furthest pickup point is 3.5 m from the mast - the result is manual handling for the last half-metre, which defeats the purpose of the installation.
Step 3: Understand the Full Cost Breakdown (2026 Prices)
Purchase price is only part of the picture - installation and foundation costs can add 30-60% to the crane price for floor-mounted units.
| Category | Price Range (AUD) | Typical Configuration |
|---|---|---|
| Light-duty manual (0.25-0.5 t) | $3,000-$8,000 | Wall-mount or pillar, manual chain hoist, 2-3 m boom |
| Mid-range electric (0.5-2 t) | $8,000-$25,000 | Free-standing pillar, electric chain hoist, 3-5 m boom |
| Heavy-duty engineered (2-5 t) | $25,000-$50,000+ | Free-standing pillar, motorised slew, electric hoist, 4-8 m boom |
| Foundation (floor-mounted) | $2,000-$8,000 | Reinforced concrete pad engineered to crane SWL and soil conditions |
| Installation and commissioning | $1,500-$5,000 | Crane erection, hoist installation, electrical connection, load test |
| Annual inspection | $300-$800 | Competent person inspection under AS 2550.1 |
A mid-range 1 tonne pillar jib at $15,000 with $6,000 in foundation and installation costs $21,000 all-in. Annual running cost is $500-$1,200 for inspection and minor maintenance. Over 10 years, that single station eliminates manual handling injuries that cost Australian employers $12,000-$50,000+ per incident in workers' compensation alone. Get quotes for jib cranes to compare all-in installed pricing.
Step 4: Plan the Asset - Depreciation and Financing
ATO Depreciation Reference
ATO effective life for cranes (fixed): 20 years. Diminishing value rate: 10%. Prime cost rate: 5%. Units under $20,000 qualify for instant asset write-off. A $15,000 jib crane using diminishing value depreciates to approximately $2,000 residual at year 20.
Step 5: Evaluate Suppliers
You are ready to go to market. Use this checklist to assess each supplier.
| Factor | What to Ask |
|---|---|
| Design and engineering | Is the crane designed and certified to AS 1418.1? Can drawings be provided for foundation engineering? |
| Foundation scope | Does the supplier design the foundation or provide specifications for a civil contractor? |
| Installation | Does the supplier install and commission the crane, including load testing? |
| Hoist supply | Is the hoist included in the crane price or quoted separately? What brand? |
| Structural assessment | For wall-mounted jibs: does the supplier provide or coordinate the structural engineering assessment? |
| Lead time | Is the crane manufactured in Australia or imported? What is delivery lead time? |
| Inspection support | Can the supplier provide annual AS 2550.1 inspections? |
| Spare parts | Are hoist chains, hooks, bearings and slew ring components stocked locally? |
| Custom engineering | Can the supplier engineer a non-standard boom length, capacity or mounting configuration? |
Compliance Requirements
- Jib cranes must be designed, manufactured and installed in accordance with AS 1418.1 (cranes, hoists and winches - general requirements)
- Annual competent person inspection is required under AS 2550.1. The inspection must include structural, mechanical and electrical components
- The PCBU must maintain a plant register and ensure all lifting gear (slings, shackles, hooks) is inspected and tagged
- Jib cranes under 10 tonnes SWL do not typically require an operator licence, but the PCBU must verify operator competency through documented training
Frequently Asked Questions
What does a jib crane cost fully installed in Australia?
A mid-range 1 tonne pillar jib costs $15,000-$25,000 for the crane plus $3,500-$13,000 for foundation, installation and commissioning. Total installed cost: $18,500-$38,000 depending on site conditions.
Do jib crane operators need a licence in Australia?
Jib cranes under 10 tonnes SWL do not typically require an operator licence under WHS Regulations. The PCBU must still provide documented competency training and assessment for all operators.
When should I choose a jib crane over an overhead crane?
Choose a jib crane when lifting is localised to a single station with a defined radius under 8 m. Overhead cranes suit operations requiring coverage across an entire building bay or production line.
What foundation is required for a free-standing jib crane?
A reinforced concrete pad typically 1.0-1.5 m deep engineered to the crane's rated capacity and local soil conditions. Foundation cost ranges from $2,000-$8,000 depending on SWL and ground type.
What inspection schedule applies to jib cranes in Australia?
Annual competent person inspection under AS 2550.1 is mandatory. Daily pre-use visual checks of the hoist, chain and boom should be performed by the operator before each shift.
What Matters Most
- Match mounting type to facility: pillar for open floor, wall-mount for constrained bays, mast for no-foundation sites
- Size the boom to cover the full work radius: undersizing by half a metre defeats the installation
- Budget for installation: foundation and commissioning add 30-60% to the crane price on floor-mounted units
- Manual handling ROI is fast: one prevented injury typically exceeds the crane's installed cost
- Annual inspection is mandatory: AS 2550.1 compliance with a competent person every 12 months
Most buyers shortlist 2-3 suppliers after getting initial quotes with installed pricing.
