Industrial dust collection systems are essential for managing airborne particulates, maintaining production efficiency and supporting workplace safety across manufacturing and processing facilities.

However, effective dust collection depends on more than the filter media or extraction equipment. The components responsible for cleaning the filters also play an important role in maintaining consistent system performance.

Pulse jet valves are widely used in baghouse dust collectors and cartridge filtration systems to deliver short bursts of compressed air that dislodge accumulated dust from filter surfaces.

When selecting these valves, industrial buyers commonly encounter two configurations: integral pilot pulse jet valves and remote pilot pulse jet valves.

Although both perform the same fundamental cleaning function, their differences can influence installation complexity, maintenance accessibility and suitability for particular operating environments.

Understanding these differences can help engineers, maintenance teams and procurement professionals select equipment that meets their operational requirements.

Why Pulse Jet Valves Matter in Industrial Dust Collection

Dust collection systems continuously capture airborne particles generated during industrial processes such as material handling, crushing, grinding, mixing and manufacturing.

Over time, dust accumulates on filter bags or cartridges, increasing resistance to airflow.

Without effective cleaning, this accumulation can contribute to:

• Increased differential pressure across filters

• Reduced extraction efficiency

• Higher demands on extraction fans

• More frequent maintenance interventions

• Disruptions to production processes

Pulse jet cleaning systems address these challenges by periodically releasing compressed air through the filters to remove accumulated dust.

The valves must open and close rapidly to deliver the required cleaning pulses.

However, cleaning performance also depends on compressed air pressure, valve sizing, pulse duration, filtration design and cleaning controller settings.

Selecting a suitable pulse jet valve configuration is therefore an important part of the overall dust collector design.

The Practical Challenge: Integral or Remote Pilot?

One of the decisions industrial buyers face is whether to use a valve with an integrated solenoid pilot or a remotely mounted pilot arrangement.

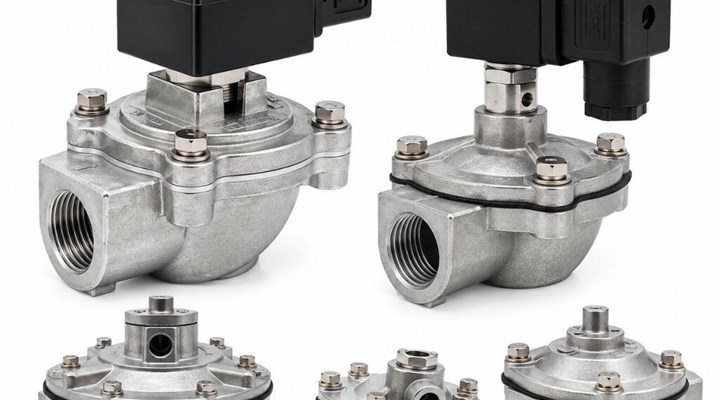

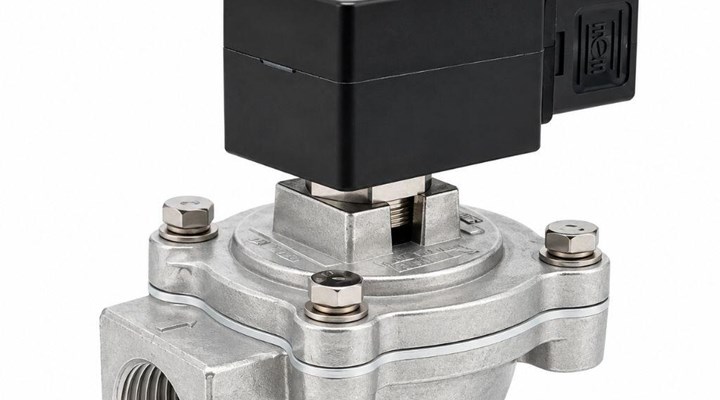

Integral pilot pulse jet valves incorporate the solenoid pilot directly into the main valve assembly.

This creates a compact configuration with fewer external pilot connections, making installation relatively straightforward.

Remote pilot pulse jet valves, by comparison, use a separate solenoid connected to the main diaphragm valve through pilot tubing.

This arrangement allows the solenoid to be positioned away from the main valve body.

The difference may appear relatively minor, but it can influence how a dust collection system is installed, accessed and maintained throughout its operating life.

For example, a compact dust collector with easily accessible valves may benefit from an integral pilot arrangement.

A larger filtration system with valves installed in elevated or restricted locations may benefit from remotely positioned solenoids.

Neither option is universally better. The appropriate choice depends on the system's design and operating requirements.

Installation and Maintenance: Looking Beyond Initial Cost

Industrial equipment selection often focuses on purchase price and technical compatibility.

However, maintenance accessibility and installation requirements can have a substantial influence on long-term operating costs.

Integral pilot valves generally require fewer external connections because the pilot solenoid is mounted directly on the valve.

This can simplify installation and reduce the number of potential leakage points associated with pilot tubing.

The main consideration is accessibility.

If the valve is installed in a difficult-to-reach location, technicians may need additional access arrangements to inspect or replace the solenoid.

Remote pilot configurations offer a different approach.

By locating solenoids in more accessible positions, maintenance teams may be able to inspect and service pilot components without directly accessing every main valve assembly.

This can be particularly useful in larger dust collection systems with multiple cleaning valves.

However, remote pilot installations also introduce additional tubing and fittings that require correct installation and periodic inspection.

The decision should therefore consider the complete maintenance arrangement rather than the convenience of one component alone.

Environmental Conditions Can Influence Valve Configuration

Dust collectors operate across a wide range of industrial environments.

Some are installed indoors under relatively controlled conditions, while others operate near high-temperature processes, outdoor equipment or dusty production areas.

Environmental exposure can influence the selection and positioning of electrical components.

With integral pilot valves, the solenoid is installed directly on the valve assembly and generally experiences the surrounding conditions at that location.

Remote pilot arrangements allow the solenoid to be positioned elsewhere, potentially reducing exposure to localised heat, dust or moisture.

This flexibility can be useful in demanding industrial installations.

However, remote pilot valves should not automatically be considered suitable for hazardous areas.

Where combustible dust, explosive atmospheres or other hazardous conditions are present, equipment must be selected and installed according to the applicable ratings, standards and site requirements.

Both valve configurations must also operate within their specified pressure and temperature limits.

How Valve Response Affects Filter Cleaning

Pulse jet cleaning relies on the rapid release of compressed air.

When the cleaning controller activates the pilot solenoid, pressure above the main valve diaphragm is released, allowing the diaphragm to open and deliver a cleaning pulse.

Integral pilot valves typically have a short pilot air path because the solenoid is mounted directly on the valve.

Remote pilot valves use additional tubing between the solenoid and the main valve.

The length and diameter of this tubing can influence pilot response and valve operation.

For this reason, remote pilot installations require careful attention to manufacturer recommendations for tubing dimensions and installation arrangements.

Industrial buyers should also consider:

• Required operating pressure

• Valve size and connection arrangement

• Cleaning pulse duration

• Compressed air supply capacity

• Compatibility with the cleaning controller

• Filter cleaning requirements

Evaluating these factors helps ensure that the selected valve configuration is compatible with the broader filtration system.

Where Are Integral and Remote Pilot Valves Commonly Used?

The suitability of each configuration varies according to the dust collection system and its operating environment.

Cement and Bulk Material Handling

Cement plants, crushing operations and bulk material handling facilities often generate substantial dust loads.

Large baghouse systems may contain numerous pulse jet valves, making maintenance accessibility an important consideration.

Remote pilot arrangements can provide flexibility where main valves are positioned in difficult-to-access locations.

Food and Agricultural Processing

Flour mills, grain handling facilities and powdered ingredient processing operations rely on dust extraction systems to manage airborne particles.

Compact filtration units may use integral pilot valves where installation simplicity is important.

Larger installations may consider remote pilot configurations depending on maintenance arrangements and system layout.

Combustible dust risks and applicable equipment requirements must also be assessed.

Chemical and Pharmaceutical Processing

Dust collection systems in chemical and pharmaceutical facilities may require careful consideration of environmental conditions, maintenance procedures and equipment positioning.

Remote pilot configurations can allow solenoids to be located in more accessible or suitably protected positions.

The final selection depends on the process conditions and applicable safety requirements.

Steel, Metal and Wood Processing

Foundries, metalworking facilities, sawmills and woodworking operations can generate significant particulate loads.

Valve selection should consider dust collector size, temperature exposure, maintenance access and cleaning system requirements.

Both integral and remote pilot configurations may be suitable depending on the installation.

What Should Industrial Buyers Check Before Purchasing?

Before selecting a pulse jet valve, buyers should assess how the component will integrate with the existing or proposed dust collection system.

Several practical questions can help guide the decision.

Is the valve compatible with the existing dust collector?

Check valve dimensions, connection type, operating pressure and cleaning controller compatibility.

Can maintenance personnel access the valve safely?

Consider whether an integrated solenoid is practical or whether remote pilot positioning would improve accessibility.

What conditions will the valve operate under?

Review ambient temperature, dust exposure, moisture and any hazardous-area requirements.

Does the system require multiple valves?

Larger installations may benefit from evaluating how pilot solenoids are arranged and accessed.

Are replacement components readily identifiable?

Confirm the appropriate diaphragm, solenoid and other service components for the selected valve model.

These considerations help reduce the risk of choosing equipment based solely on initial purchase price.

Matching Pulse Jet Valve Solutions to Industrial Requirements

For facilities reviewing their dust collector maintenance strategy or planning a new filtration installation, both integral and remote pilot configurations offer practical advantages.

APS Technology Australia offers integral pilot and remote pilot pulse jet valve solutions for industrial dust collection and baghouse filtration applications.

Integral pilot configurations provide a compact arrangement with straightforward installation and fewer external pilot connections.

Remote pilot configurations provide flexibility in solenoid positioning, which can be valuable when maintenance access or environmental exposure is a concern.

The most suitable option depends on the existing system, installation conditions and required operating parameters.

Rather than selecting a configuration based on general assumptions, buyers should review their application requirements and confirm technical compatibility before purchasing.

Conclusion: Selecting for Long-Term Operational Suitability

Choosing between integral pilot and remote pilot pulse jet valves requires a practical understanding of the dust collection system.

Integral pilot valves can be well suited to compact installations where simplicity and accessibility are priorities.

Remote pilot valves offer additional flexibility for installations where solenoid positioning and maintenance access are important considerations.

Both configurations can support effective filter cleaning when correctly specified, installed and maintained.

For engineers, maintenance managers and procurement teams, the objective should be to select a valve that meets the system's technical requirements while supporting manageable maintenance and reliable operation.

A well-informed selection process can contribute to more effective dust collector management over the equipment's service life.
