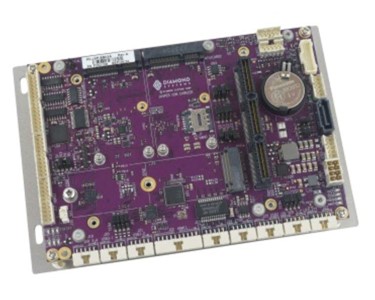

Jasper is a COM Express carrier board and SBC for Type 6 Basic (125x95mm) and Compact (95x95mm) modules. It is designed for applications that require ruggedness, a high level of I/O, or extended product lifetime. Notable features of Jasper include:

• Rugged mechanical design with thicker PCB and latching connectors

• Wide temperature operation up to -40 to +85°C (depending on the installed COM)

• Built-in 16-bit data acquisition circuit with autocalibration

• Dual minicard sockets with PCIe and USB interfaces

• Dual M.2 sockets for flash memory and network connectivity

• PCIe/104 expansion socket supporting x16 and x1 links


Jasper is available as a carrier board alone, for user integration with a COM of your choice, or as a ready-to-run 'single-board computer' with an 11th or 13th generation Intel Core i7 / Xeon processor COM installed. Both Windows and Linux OS support are standard.

Jasper is ideal for applications intended to experience long lifetimes. The use of a COM enables quick migration to a new model should the currently selected model reach end of life. The entire mechanical design and feature set remain unchanged, while the performance can be upgraded and the lifecycle significantly extended simply by swapping out the existing COM for a newer one.

In addition, a COM-based design gives your application the ability to access the latest processor technology much sooner than designing in a traditional SBC, since new processors are offered in COM form factor much sooner than in traditional SBC form factors.
