Iskra Systemi Synchroscope (Synchrometer) ...

Iskra Systemi - Synchroscope (Synchrometer) | SQ0214 Price Guide: $749

Supplier: Fastron Electronics

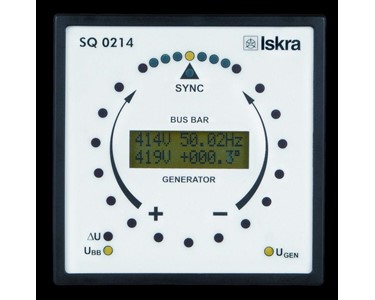

Iskra Systemi - Synchroscope (Synchrometer) | SQ0214
Synchroscope (Synchrometer) | SQ0214
Iskra Systemi - Synchroscope (Synchrometer) | SQ0214

Synchroscope (Synchrometer) Wide Range of Line to Line Voltages, 96x96mm Dual Frequency and Voltage Display, Continual Set Inpulse, Dead Busbar & Dead Genertor Function, Delta Phi Function, IP54 SQ0214

Description
148 Recent Views In Stock

Iskra Systemi SQ0214 Synchroscope (Synchronoscope)

Purchase now in Online Store

  • Measurement of phase difference between bus bar and generator
  • Five instruments in one (SQ 0x14)
  • Circular display of ? phase difference
  • Magnifield display of phase difference ? = ±20
  • Microprocessor processing
  • Simple synchronization conditions setting
  • Output relay for synchronisation (pulse or continuous)
  • ''Dead busbar or generator'' functionality
  • Power supply from bus bar or generator
  • Standard 96x96 mm or 144x144 mm din housing
  • LCD with backlight for voltage, frequency and/or ? monitoring (SQ 0x14 only)
  • High immunity to EMC disturbances
  • Special functions set with three jumpers inside the instruments Status output
  • Green led for indication of both voltages
  • Ship version (Bureau veritas certificate - SQ 02x4)



Iskra Systemi  - 544VACVAC SQ0214 Synchrometer
Function Phase Difference (??) Measurement
Nominal Voltage (Un) 440VAC ± 20 % (UL-N = 400 VMAX) @ 40-70Hz
Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA
Status Output Open-Collector 24 Vdc + 20% @30mA
Switch On Delay Time Range 0,1 ... 1 s +/-10%
Phase Difference Setting Range 2 ... 20 °el ± 3 °el
Voltage Difference Setting Range 1 ... 10 % +/-2.5%
Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40%
Power Consumption < 4VA
Short Term Overload 2 x Un  for 3 seconds
LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el
Synchronisation Accuracy +/- 10%
Termination Style Screw
Weight 530g
Certification CE
Factory Pack Qty 1
Material of housing PC/ABS Unflammable, according to UL 94 V-0
Enclosure protection IP52 for case, IP20 for terminals with protective cover
Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2
Operating Temperature -20...55 °C



Product Datasheet

User Manual





Read more...

To contact Fastron Electronics about Iskra Systemi Synchroscope (Synchrometer) | SQ0214 use Get a quote.

Iskra Systemi SQ0214 Synchroscope (Synchronoscope)

Purchase now in Online Store

  • Measurement of phase difference between bus bar and generator
  • Five instruments in one (SQ 0x14)
  • Circular display of ? phase difference
  • Magnifield display of phase difference ? = ±20
  • Microprocessor processing
  • Simple synchronization conditions setting
  • Output relay for synchronisation (pulse or continuous)
  • ''Dead busbar or generator'' functionality
  • Power supply from bus bar or generator
  • Standard 96x96 mm or 144x144 mm din housing
  • LCD with backlight for voltage, frequency and/or ? monitoring (SQ 0x14 only)
  • High immunity to EMC disturbances
  • Special functions set with three jumpers inside the instruments Status output
  • Green led for indication of both voltages
  • Ship version (Bureau veritas certificate - SQ 02x4)



Iskra Systemi  - 544VACVAC SQ0214 Synchrometer
Function Phase Difference (??) Measurement
Nominal Voltage (Un) 440VAC ± 20 % (UL-N = 400 VMAX) @ 40-70Hz
Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA
Status Output Open-Collector 24 Vdc + 20% @30mA
Switch On Delay Time Range 0,1 ... 1 s +/-10%
Phase Difference Setting Range 2 ... 20 °el ± 3 °el
Voltage Difference Setting Range 1 ... 10 % +/-2.5%
Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40%
Power Consumption < 4VA
Short Term Overload 2 x Un  for 3 seconds
LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el
Synchronisation Accuracy +/- 10%
Termination Style Screw
Weight 530g
Certification CE
Factory Pack Qty 1
Material of housing PC/ABS Unflammable, according to UL 94 V-0
Enclosure protection IP52 for case, IP20 for terminals with protective cover
Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2
Operating Temperature -20...55 °C



Product Datasheet

User Manual





Read less...

To contact Fastron Electronics about Iskra Systemi Synchroscope (Synchrometer) | SQ0214 use Get a quote.
