Isuzu 6x4 Water Truck | 14,000 L Hot Dip ...

All Products > Trucks & Trailers > Water Truck

Isuzu - 6x4 Water Truck | 14,000 L Hot Dip Galvanised Steel Tank Price Guide: $344,900

Supplier: Midcoast Trucks

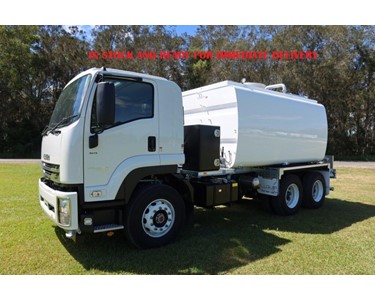

Isuzu - 6x4 Water Truck | 14,000 L Hot Dip Galvanised Steel Tank
6x4 Water Truck | 14,000 L Hot Dip Galvanised Steel Tank
Isuzu - 6x4 Water Truck | 14,000 L Hot Dip Galvanised Steel Tank

This 6x4 Water Truck with a 14,000 litre hot dip galvanised steel tank is designed for robust and efficient water transport and delivery, ideal for construction, roadworks, and large-scale site maintenance.

Description
Heavy-duty 14,000 litre hot dip galvanised tank with advanced hydraulic water delivery and spray systems.
Condition: New
Year: 2024
Stock Number: B90110
Cab Type: Single Cab
Make: Isuzu
Model: FVZ 240-300 AUTO – 6x4
GVM: 24,000 kg
Transmission: 6-speed Automatic (ALLISON)
Engine: 7.8L turbo/intercooled, 300hp
Tank Features
  • Capacity: 14,000 litres, hot dip galvanised steel tank with corrosion protection
  • Low profile design with 3x 5mm crossway baffle walls and 1x longitudinal baffle wall for stability and surge reduction
  • Splash rim, integrated all around, enhances stability
  • Flexible, spring-loaded mounting system for chassis flex
  • 3D CAD design ensures balanced axle weight distribution
  • Supplied with 2x 80mm suction hose assemblies and storage
  • High clearance, heavy-duty mudguards and spray suppression
Pump & Hydraulic System
  • Hot shift PTO suitable for automatic transmission
  • Australian-made Southern Cross 100x65x250 cast iron water pump: 2,200 LPM, 60m total head, 86 PSI
  • Hydraulic system includes HYDAC oil tank, return filter, oil cooler, gauges, and 20L hydraulic oil
  • Cabin and external pump engagement switches for ease of operation
  • Noise level below 85dB for comfortable operation
  • Flexible bellows between tank and pump for reduced vibration
  • Hydraulic driven water pump speed adjustable from the cabin
  • Pressure relief valve for continuous safe operation
Suction & Pressure Pipework
  • 80mm pump suction system, downward-facing for easy connection
  • System can fill from rivers, dams, or hydrant sources; capable of draining from the same point
  • 80mm cam lock couplings
  • Pressure pipework is hot dip galvanised
  • Includes underbody v-jet spray bars (2x 14 brass v-jets)
Spray & Cannon System
  • Rear centre deflector fan spray (80mm), adjustable volume and pattern
  • Rear batter deflector fan sprays (2x 80mm), adjustable
  • Front (2x 50mm) gutter flusher sprays for road washdown
  • 65mm electric Nitro water cannon, joystick controlled for UP/DOWN/LEFT/RIGHT and adjustable FOG/JET STREAM sprays
Additional Features
  • Pressure outlets: 80mm with butterfly valve, 20mm with ball valve (for external equipment)
  • All sprays are air actuated, with illuminated in-cab switches in a control panel
  • Heavy-duty, manual rewind hose reel with 20m of 25mm hose and fire fighting nozzle
  • Robust electrical harness with Deutsch connectors, IP66-rated module, Hella LED lighting, LED beacon, and work light
  • Heavy-duty, lockable steel toolbox (approx. 800mm x 500mm x 500mm)
  • Hot dip galvanised subframe and fittings, non-corrosive materials throughout
  • ADR-compliant lighting and robust rustproofing measures
Specification
Detail
Stock Number
B90110
Vehicle Type
Water Truck
Tank Capacity
14,000 litres
GVM
24,000 kg
GCM
36,000 kg
Transmission
6 Speed Automatic (ALLISON)
Engine
7.8L Turbo/Intercooled, 300hp
Cab
Single Cab
