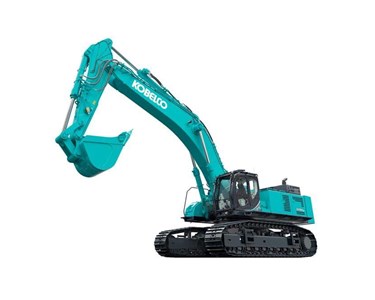

Large Excavator SK850LC-10

The Kobelco SK850LC-10 excavator combines higher efficiency and low fuel consumption with 380 kW engine power, a 2.3 - 5.1 m3 bucket capacity and variable-width crawlers.

Higher efficiency, low fuel consumption

Overview

Hydraulic technology delivers increased digging power, productivity and low fuel consumption for demanding worksites, from urban centres to mines.
Improved hydraulic line layouts, larger and smoother piping, low-resistance connections and reduced valve resistance minimise energy loss.
Arm interflow system reduces in-line resistance and pressure loss.

Specification	Value
Model	SK850LC-10
Bucket Capacity	2.3 - 5.1 m3
Engine Power	380 kW / 1,800 min-1
Operating Weight	79,400 kg - 88,000 kg
Max. Bucket Digging Force	403kN (ISO6015)
Max. Arm Crowding Force	311kN (ISO6015)
Drawbar Pulling Force	653kN

Engine and fuel efficiency

ECO-mode balances productivity and fuel efficiency for urban engineering projects; S-mode provides minimum fuel consumption for utility and precision work; H-mode provides maximum power and productivity.
AIS (Auto Idle Stop) automatically stops the engine when the boarding/disembarking lever remains raised, reducing standby fuel consumption and CO2 emissions.
Variable-geometry turbocharger adjusts air intake to maximise combustion efficiency and reduce PM and fuel consumption.
Water-cooled EGR lowers combustion temperature to reduce NOx.
SCR system with DEF/Urea converts NOx into nitrogen and water; post-exhaust treatment captures and disposes of PM.
Electronic-control common-rail engine uses high-pressure, multiple fuel injection, an EGR cooler and DP filter to optimise combustion and reduce PM and NOx.
Hydraulic engine-cooling fan drive optimises rotation speed to reduce fuel consumption and noise. Independent oil cooler fan matches cooling to hydraulic oil temperature.

Specification	Value
Model	HINO E13CYM
No. of cylinders	Water-cooled, 4cycle 6cylinder electronically-controlled common rail system type diesel engine with turbo-charger
Bore and stroke	137 mm × 146 mm
Displacement	12.91 L
Rated power output	Net 380 kW / 1,800 min-1 (ISO 14396 : without fan)
Max. torque	Net 2,120 N.m / 1,300 min-1

Hydraulic, travel and swing systems

Specification	Value
Pump — Type	Two variable displacement pumps + One gear pump
Max. discharge flow	2 × 504 L/min, 1 × 30 L/min
Extra gear pump	1 × 49 L/min
Travel motors	2 x axial-piston, two-step motors
Travel brakes	Hydraulic brake per motor
Parking brakes — travel	Wet multiple plate
Travel shoes	51 each side
Travel speed (high/low)	4.2 / 2.7 km/h
Drawbar pulling force	653 kN
Gradeability	70 % (35 deg)
Ground clearance	850 mm
Swing motor	Axial piston motor
Parking brake — swing	Oil disk brake, hydraulic operated automatically
Swing speed	7.3 min-1
Swing torque	268 kN.m
Tail swing radius	4,580 mm
Min front swing radius — ME	5,470 mm
Boom cylinders	210 mm × 1,800 mm
Arm cylinder	220 mm × 2,175 mm
Bucket cylinder	200 mm × 1,570 mm

Controls and operator comfort

Standard quick hitch hydraulic piping speeds attachment changes.
Smooth, light-effort operation levers reduce fatigue.
One-touch attachment mode switch changes hydraulic circuit and flow for attachments, with breaker and nibbler mode icons.
Colour LCD multi-display shows fuel consumption, maintenance intervals, PM accumulation and urea level, with rear-camera image switching.
Analogue fuel and engine-water-temperature gauges, low-fuel-consumption indicator, digging mode switch and monitor display switch.
Two hand levers or two foot pedals independently control each track forwards and backwards.
All-weather, sound-suppressed steel cab with sealed, pressurised construction to keep dust out and reduce noise.
Coil springs and silicone-oil-filled high suspension mounts reduce vibration; mount stroke is twice that of a conventional mount.
Large front glass and no centre pillar on the right side provide an unobstructed view.
Expanded cab, large door and additional headroom ease entry and exit.
Air-suspension seat, flat-reclining backrest and double-slide adjustment.
Large air conditioner with adjustable back-pillar vents directing warm or cool air behind and beside the operator.
Bluetooth AM/FM stereo, USB/AUX/12V power outlet, storage tray, large cup holder and emergency-exit hammer.
Rear-view camera and standard right-side camera support safety checks.
Standard mounting brackets for vandalism guards. Working lights are optional.

Durability and maintenance

Enhanced hydraulic system design improves strength, performance, reliability and durability while reducing downtime.
Hydraulic filter restriction indicator monitors inlet/outlet pressure difference and displays a clogging warning.
Super-fine hydraulic fluid filter separates small particles; protective cover reduces contamination during filter changes.
Self-lubricating attachment-pin bushings and abrasion-resistant bucket-pin bushings. Separately replaceable two-piece bucket bushings protect the arm from bucket-ear contact and wear.
Three heavy-duty track guides on each crawler side frame.
Optional protective lower undercover shields hydraulic piping and equipment from flying rocks, rebar and debris. Optional full track guides resist vibration and reduce de-tracking concerns.
Right-side door and catwalk ease grease refilling; front-deck access door permits ground-level access to the auto grease gun.
Auto-coil grease gun holder, grease tank and lubrication hose.
Bolted double service doors provide access to the intercooler, A/C condenser, fuel cooler, radiator and oil cooler.
Engine compartment includes engine oil drain valve, engine oil filter, fuel pre-filter with water separator, air cleaner and fuel filter.
Three hydraulic oil filters, suction filter, drain filter, large tool box, battery, refuelling pump and battery disconnect switch.
Catwalk, rear swing flashers and maintenance walk improve service access; front upper-frame access port simplifies swing-bearing, gear and bolt inspection.
DEF/AdBlue tank is inside the standard machine storage compartment.
DPF manual regeneration switch, easy-access fuse box, removable two-piece floor mat with handles and tool-free removable inside/outside air-conditioner filters.
Sloped crawler side frames simplify mud removal. Fuel tank bottom flange and large drain valve ease maintenance.

Maintenance specification	Value
Hydraulic fluid filter replacement cycle	1,000 hours
Lubrication points around the bucket	250 hours
Other lubrication points	500 hours

Refilling capacities

Specification	Value
Fuel tank	960 L
Cooling system	74 L
Engine oil	54 L
Travel reduction gear	2 × 22 L
Swing reduction gear	2 × 21.5 L
Hydraulic oil tank	522 L tank oil level
Hydraulic system	905 L hydraulic system
DEF/Urea tank	83 L

Working ranges and attachments

Attachment	Weight
7.25 m ME Boom	8,060 kg

Variable crawler and transport configurations

Variable-gauge crawler extends for stable operation and retracts for transport; crawler width is adjusted by changing fixing-bolt positions.
Four disassembly configurations allow transport with the boom attached, as the main body, or without the crawler frame.

Specification	Value
Shoe	650 mm
Crawler Width — Extended	4,200 mm
Crawler Width — Retracted	3,400 mm
Transportation width	3,190 mm
Standard counterweight	13,300 kg

Remote monitoring

GEOSCAN uses satellite and cellular communications for remote machine monitoring and routine maintenance management.
Location, workload, maintenance information and diagnostic data are available 24/7.
Records operating hours, fuel consumption, idling time and working-hour categories including digging, idling, travelling and hydraulic attachment use.
Maintenance status can be monitored across multiple machines and sites, with data relayed for servicing planning.
Area alarm notifies when the machine leaves a predefined area; engine-start alarm notifies when it starts outside predefined hours.

Lifting and application requirements

Lift capacities comply with ISO 10567 and do not exceed 87% of hydraulic lift capacity or 75% of tipping load. Asterisk-marked capacities are hydraulically limited.
Arm top pin is the lift point. Ratings apply without a bucket, on level, firm, uniform ground; accessory weights must be deducted.
Lift ratings cover front and side or 360-degree lifting. Allowances are required for ground conditions, side loads, sudden stopping and other operating conditions.
Specialist equipment is required for demolition work.
