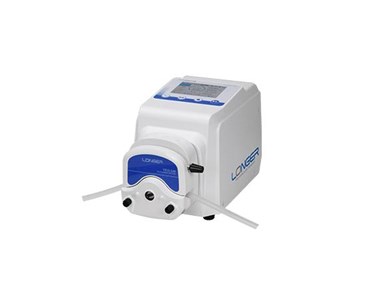

Laboratory Peristaltic Pump | Longer Pump GF400-1B

Supplier: ProfTek Pty Ltd

The Longer Pump GF400-1B laboratory peristaltic pump provides stable constant-flow delivery, touchscreen and keypad control, and a maximum single-channel flow rate of 2000 mL/min.

stable constant-flow delivery

Controlled liquid handling in laboratory and research workflows.
Touchscreen combined with physical buttons for simple, smooth and reliable operation.
Embedded flow meter closed-loop control algorithm enables stable constant-flow delivery.
Up to 65,000:1 turndown ratio with ±0.1% speed accuracy.
Supports simultaneous multi-source control.
Manufactured by Longer Pump.

Parameter	Value
Max Flow Rate (Single Channel)	2000 mL/min
Speed Range	0.01-400 rpm
Speed Resolution	0.01rpm(<100rpm); 0.1rpm(=100rpm)
Display	3.5-inch colour LCD screen shows parameters and statuses, such as pump speed, flow rate, time, volume, etc.
Work Mode	1.Continuous mode:continuous speed, continuous flow rate(displays the pump speed or flow rate)2.Time mode: time speed, time flow rate( supports repeatable time based dispensing)3.Single volume mode:single delivery to a set volume
Control Mode	Touchscreen+ keypad control; foot switch / handheld dispenser contro; external signal control; communication control.Multiple sources can be enabled simultaneously.
Calibration	Flowrate calibration, volume calibration, auto-calibration with a flow meter(optional)
External Control	Start/stop control, direction control:5V-24V logic level signal or relay signal (dry contact) Speed control:4-20mA, 0-5V, 0-10V, 0-10kHz, the signal range and speed range can be configure on the pump.
Communication Control	RS485 interface, Modbus RTU protocol or Longer OEM protocol
Dimensions(L x W x H)	225x145x165mm
Power Supply	AC100-240V 50/60Hz
Operating Temperature	0?-40?
