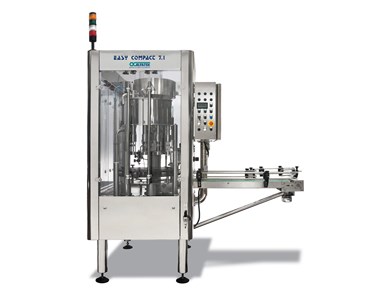

Liquid Filling Machine | ALFATEK Compact Filler

Supplier: Grapeworks

The ALFATEK Compact Filler is a stainless steel WLP Wine Low Pressure monobloc with patented Antiox Deox System®, intended for bottling small quantities of high quality products.

Compact, extremely small mechanical structure made entirely of stainless steel, designed for maximum functionality and ease of use, even in limited spaces.
Bottle entry and exit are on the same side as the control panel, allowing a single operator to load empty bottles and extract full bottles.

Patented Antiox Deox System® process technology uses low pressure inert gas for bottling high quality products.
Applied during the delicate filling transit phase, the system protects the product by preventing the introduction of oxygen and preserving dissolved fragrances, aromas and gases intact.

Automatic CIP washing provides complete sanitisation without false bottles.
An electro-pneumatic system ensures capillary passage of sanitising solution and steam through each conduit that comes into contact with the product, preventing microbiological contamination.

Component	Specification
Rinser sterilizer	7-clamp rinser sterilizer with double processing function
Deox® head	Single head Deox®, for pre-evacuation and injection of nitrogen in the bottle or for double pre-evacuation
Filler	7-valve WLP Wine Low Pressure filler
Capping machine	1-head capping machine, for flush corks, with nitrogen injection and pre-evacuation of air before capping

Compact, extremely small mechanical structure made entirely of stainless steel, designed for maximum functionality and ease of use, even in limited spaces.
Bottle entry and exit are on the same side as the control panel, allowing a single operator to load empty bottles and extract full bottles.

Patented Antiox Deox System® process technology uses low pressure inert gas for bottling high quality products.
Applied during the delicate filling transit phase, the system protects the product by preventing the introduction of oxygen and preserving dissolved fragrances, aromas and gases intact.

Automatic CIP washing provides complete sanitisation without false bottles.
An electro-pneumatic system ensures capillary passage of sanitising solution and steam through each conduit that comes into contact with the product, preventing microbiological contamination.

Component	Specification
Rinser sterilizer	7-clamp rinser sterilizer with double processing function
Deox® head	Single head Deox®, for pre-evacuation and injection of nitrogen in the bottle or for double pre-evacuation
Filler	7-valve WLP Wine Low Pressure filler
Capping machine	1-head capping machine, for flush corks, with nitrogen injection and pre-evacuation of air before capping
