Quicklock Commercial Grade Dome with End ...

Quicklock Commercial Grade Dome with End Wall Price Guide: $9,450

Supplier: Quality Domes Direct

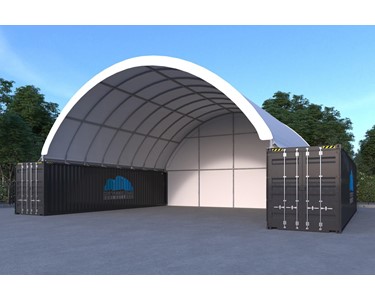

Quicklock Commercial Grade Dome with End Wall

This commercial-grade Quicklock dome with end wall offers a robust, weatherproof shelter, ideal for large-scale storage, workshops, or agricultural use.

No-weld Quicklock design enables fast installation and superior strength.

Product Overview

The Quicklock Commercial Grade Dome with End Wall provides 144 m² of fully usable, weatherproof space. Designed to sit atop or alongside 40ft shipping containers, it incorporates a modular, “no-welding” design for straightforward assembly and relocation. With its robust hot-dip galvanised steel structure and heavy-duty PVC roof, the unit delivers exposure-resistant, reliable shelter for commercial, agricultural, or industrial use.

Key Features

No-weld Quicklock system for rapid, easy installation
Engineered for 30% greater strength than standard dome shelters
Weatherproof, corrosion-resistant, and UV-protected construction
144 m² of open, unobstructed interior space
Heavy-duty 610 GSM PVC roof cover with UV and fire resistance
End wall with solid frame and PVC cover for privacy and security
10-year warranty on structure and roof cover
Can be dismantled, relocated, and reassembled without loss of integrity
Wind resistant up to 180 km/h (site dependent)
Customisation options available for walls and access

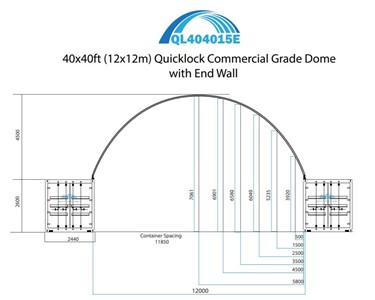

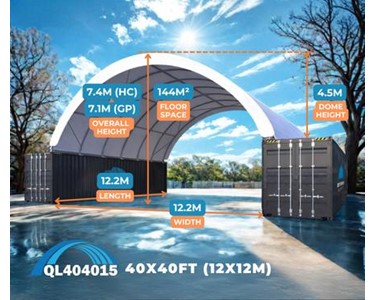

Specifications

Internal Area	144 m²
Width	12 m
Length	12 m
Dome Height (above container)	4.5 m
Full Height (GP container)	7.1 m
Full Height (High Cube container)	7.4 m
Framework	9-arch CHS steel (76 mm), 56 steel purlins (60 mm), 16 cross braces (46 mm)
Cover	610 GSM PVC, fire- and UV-resistant
Wind Rating	Up to 180 km/h (AS/NZS 1170.2)

Assembly & Installation

Twist and lock base plates onto the container or foundation.
Assemble the arch framework and insert into base rails.
Install cross-bracing, purlins, and tension ratchets.
Fit and tension the end wall frame and cover.
Secure the main PVC roof cover using steel ratchets and straps.

Applications

Workshops, maintenance sheds, and garages
Agriculture – livestock housing, crop and machinery protection
Event and exhibition spaces
Construction and industrial storage or site offices
Vehicle and boat shelter
General warehousing and equipment storage

Benefits

Quick, cost-effective installation and low maintenance
Natural air circulation for interior temperature control
Durable, all-weather construction
Portable and relocatable for changing needs
Sustainable design with efficient ventilation and lighting

Product Overview

Key Features

No-weld Quicklock system for rapid, easy installation
Engineered for 30% greater strength than standard dome shelters
Weatherproof, corrosion-resistant, and UV-protected construction
144 m² of open, unobstructed interior space
Heavy-duty 610 GSM PVC roof cover with UV and fire resistance
End wall with solid frame and PVC cover for privacy and security
10-year warranty on structure and roof cover
Can be dismantled, relocated, and reassembled without loss of integrity
Wind resistant up to 180 km/h (site dependent)
Customisation options available for walls and access

Specifications

Internal Area	144 m²
Width	12 m
Length	12 m
Dome Height (above container)	4.5 m
Full Height (GP container)	7.1 m
Full Height (High Cube container)	7.4 m
Framework	9-arch CHS steel (76 mm), 56 steel purlins (60 mm), 16 cross braces (46 mm)
Cover	610 GSM PVC, fire- and UV-resistant
Wind Rating	Up to 180 km/h (AS/NZS 1170.2)
