Develon DTL35 Tracked Skid Steer Loader

All Products > Construction & Heavy Machinery > Track Loader

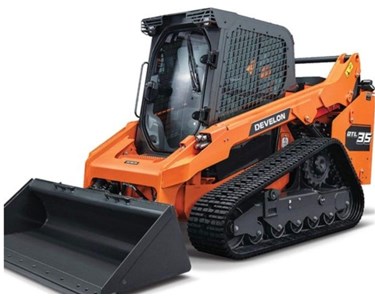

Develon - DTL35 Tracked Skid Steer Loader

Supplier: DWL Machinery
Develon - DTL35 Tracked Skid Steer Loader
DTL35 Tracked Skid Steer Loader
Develon - DTL35 Tracked Skid Steer Loader

The DTL35 Tracked Skid Steer Loader is engineered for exceptional power, productivity, and versatility in tough construction and earthmoving tasks.

Video for Develon DTL35 Tracked Skid Steer Loader
Description
Outstanding traction and stability on challenging terrain with high lifting capacity.
Key Features
  • Rated operating capacity: approx. 1,590 kg
  • High-performance turbo diesel engine
  • High-flow hydraulic system
  • Heavy-duty rubber track undercarriage
  • Enclosed air-conditioned operator cabin
  • Ergonomic joystick controls for comfort and efficiency
  • Excellent visibility for enhanced safety
  • Quick hitch system for rapid attachment changes
  • Compatible with a wide range of attachments, including buckets, pallet forks, augers, trenchers, slashers, grapples, and more
  • Designed for demanding construction, landscaping, demolition, agriculture, and material handling jobs
Engine Specifications
Make
DEVELON
Model
D34
Emission Certification
EPA Tier 4 final
Cylinders
4
Rated Power, Gross
86 kW @ 2400 rpm
Rated Power, Net
76.5 kW @ 2400 rpm
Max Torque, Net
46.9 kgfm @ 1400 rpm
Displacement
3.4 L
Starter
12 V, 3.3 kW
Battery
12 V, 150 AH
Aspiration
Turbocharged
Alternator
12 V, 140 amp
Aftertreatment
DOC, SCR (no DPF)
Dimensions
Overall length (with bucket)
4,210 mm
Overall length (without bucket)
3,372 mm
Width (factory bucket)
2,032 mm
Height to top of cab
2,133 mm
Ground clearance
247 mm
Track gauge
1,551 mm
Tumbler distance
1,767 mm
Max. overall height
4,304 mm
Bucket pin height at max. lift
3,280 mm
Clearance at max. lift and dump
2,457 mm
Performance & Capacities
  • Refill Capacities:
    • Fuel tank: 110 L
    • DEF tank: 15 L
    • Cooling system: 14 L
    • Engine oil: 14.6 L
    • Hydraulic tank: 40 L
    • Hydraulic system: 72.7 L
  • Travel speed: 9.8–14.8 km/h (low/high)
  • Maximum traction force: 45.6 kN
  • Main hydraulic pump (standard): 84 L/min @ 2400 rpm
  • Main hydraulic pump (high flow): 151.2 L/min @ 2400 rpm
  • Hydraulic pressure (standard): 23,000 kPa
  • Hydraulic pressure (high): 28,000 kPa

The loader is compatible with buckets, pallet forks, augers, trenchers, slashers, grapples, and more, making it suitable for a variety of commercial, agricultural, and construction tasks.


Read more...

To contact DWL Machinery about Develon DTL35 Tracked Skid Steer Loader use Get a quote.
