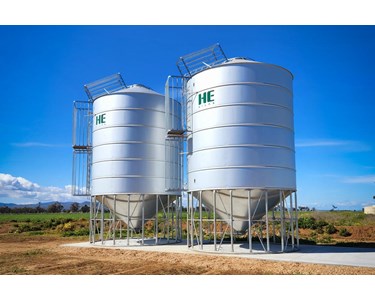

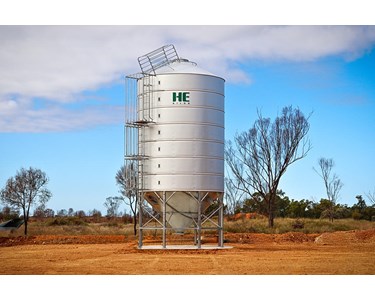

Fertiliser silos are designed for secure, long-term storage and efficient unloading of fertiliser or grain, ideal for farming operations needing sealed and customisable capacity solutions.

Sealed, gas-tight fertiliser silos delivered and installed ready to use.

Delivered and installed ready to use

Overview

These fertiliser silos are internally coated with a high-quality, two-part epoxy to ensure corrosion protection and long-term storage versatility for fertiliser and grains. The silos are sealed and gas-tight in compliance with Australian standard AS2628, complete with a pressure relief valve. Construction includes a Zincalume barrel and roof, with a galvanised support structure, and all models can be custom designed.

Key Features

Delivered and installed ready to use
Sealed and gas tight (AS2628 standard)
Zincalume barrel & roof, galvanised structure
Custom designs available
40° cone for efficient unloading

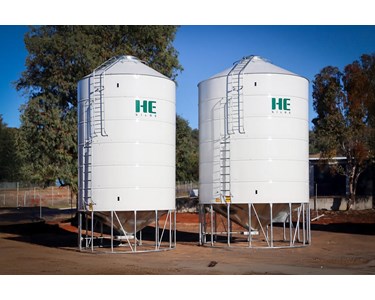

Optional upgrade to white Colorbond barrels/roof and stainless steel base for reduced corrosion and lower temperatures
Manual agitator (crank handle)
Safety inclusions: 2 sight glasses, ground opening lid, manhole in base
Covered by a 5-year warranty

Specifications

Model	Capacity (m³)	Tonnes (Approx.)	Height (m)	Diameter (m)	Auger Length (m)	Cone Degree	Cone to Ground (mm)
35m³	35	26.7	5.3	3.7	9.0	40°	600
43m³	43	32.8	6.1	3.7	9.8	40°	600
52m³	52	39.7	6.9	3.7	11.0	40°	600
78m³	78	59.6	7.7	4.5	13.7	40°	600
89m³	89	68.0	7.9	4.75	15.0	40°	550
103m³	103	78.7	8.7	4.7	16.7	40°	550

Tonnes are approximate, based on granulated urea at 767kg per cubic metre.

Ordering Process

Request a quote for your specific need
Order confirmation, including design, manual, and deposit invoice
Prepare a suitable concrete foundation; guideline provided
Custom manufacturing as required
Delivered and installed onsite, ready for immediate use

To contact Hesilos about Fertiliser Silos use Get a quote.
