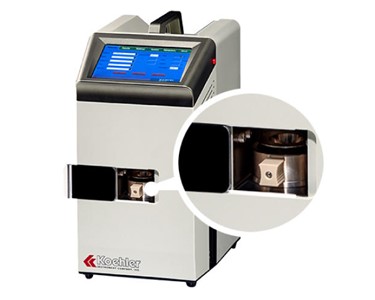

Microscale Continuously Closed Cup Flash Point Tester

Supplier: Rowe Scientific

The Koehler Microscale Continuously Closed Cup Flash Point Tester provides precise, automated flash point testing for small liquid samples, ideal for safety and quality control applications in laboratories.

Fully automatic flash point testing with very small sample volumes.

Features

Fully automatic flash point determination
Continuously closed cup operation—no open flame
Automatic corrections for ambient atmospheric changes
Small sample size (1–2 mL), reducing cost and waste
Built-in high efficiency refrigeration for faster turnaround
7-inch integrated colour touch screen user interface
Standard test methods pre-programmed for simplicity
Real-time display of temperature and pressure curves
USB and Ethernet (Internet) connections, RS232 for thermal printer
Overcurrent and overtemperature protection

Typical Applications

Determination of flash point for combustible liquids
Safety & transport regulation/classification (flammable liquids)
Quality control or detection of volatile/flammable substances in lubrication and other matrices

The sample and cup are cooled to at least 18°C below the expected flash point, then introduced into a closed but unsealed test chamber. The instrument performs a series of ignition and air supply cycles, detecting the flash point as the temperature at which chamber pressure increases above a set limit.

Specifications

Standards	ASTM D6450, D7094; excellent correlation to ASTM D93, D3828, EN ISO 6379/3680, ISO 2719, and others
Temperature Range	-30 °C to 405 °C
Heating Rate	Customisable: 0.5 to 12 °C/min. Standard rates: 2.5 °C/min ±0.3 °C/min or 5.5 °C/min ±0.5 °C/min
Temperature Accuracy	±0.1 °C
Pressure Range	0 to 200 kPa
Sample Volume	1 mL or 2 mL
Ignition Method	High voltage electric ignition
Stirring Rate	Customisable; 50–300 RPM
Interfaces	RS232, USB, Ethernet
Dimensions (W × D × H)	22.5 × 31 × 41.5 cm

Software

User-friendly interface: toggle between parameter and graphic views
Automatic calculation of initial and end temperatures based on expected flash point
Pre-programmed methods with individual user interfaces

To contact Rowe Scientific about Microscale Continuously Closed Cup Flash Point Tester use Get a quote.

Features

Fully automatic flash point determination
Continuously closed cup operation—no open flame
Automatic corrections for ambient atmospheric changes
Small sample size (1–2 mL), reducing cost and waste
Built-in high efficiency refrigeration for faster turnaround
7-inch integrated colour touch screen user interface
Standard test methods pre-programmed for simplicity
Real-time display of temperature and pressure curves
USB and Ethernet (Internet) connections, RS232 for thermal printer
Overcurrent and overtemperature protection

Typical Applications

Determination of flash point for combustible liquids
Safety & transport regulation/classification (flammable liquids)
Quality control or detection of volatile/flammable substances in lubrication and other matrices

Specifications

Standards	ASTM D6450, D7094; excellent correlation to ASTM D93, D3828, EN ISO 6379/3680, ISO 2719, and others
Temperature Range	-30 °C to 405 °C
Heating Rate	Customisable: 0.5 to 12 °C/min. Standard rates: 2.5 °C/min ±0.3 °C/min or 5.5 °C/min ±0.5 °C/min
Temperature Accuracy	±0.1 °C
Pressure Range	0 to 200 kPa
Sample Volume	1 mL or 2 mL
Ignition Method	High voltage electric ignition
Stirring Rate	Customisable; 50–300 RPM
Interfaces	RS232, USB, Ethernet
Dimensions (W × D × H)	22.5 × 31 × 41.5 cm

Software

User-friendly interface: toggle between parameter and graphic views
Automatic calculation of initial and end temperatures based on expected flash point
Pre-programmed methods with individual user interfaces
