Mitaco Winch Lifters / Duct Lifters – ...

Mitaco - Winch Lifters / Duct Lifters – 159kg & 181kg Capacity- 3.1 & 3.5 Lift Price Guide: $1,500

Supplier: Mitaco

Mitaco Winch Lifter

Winch Lifter Australia

Winch Lifter Trolley

Winch

Winch Lifter Extended

Lifter with Inverted Forks

1/6

Provides practical lifting solutions for air conditioning, duct installation and other material handling applications.

Compact- Portable- Affordable

36 Recent Views In Stock

Winch Lifters / Duct Lifters providespractical lifting solutions for air conditioning, duct installation and othermaterial handling applications. The range includes models with different frameconfigurations, lifting heights and capacities to suit a variety ofinstallation requirements.

Designed for easy manoeuvrability, quick setup andconvenient transport, these lifters are suitable for commercial, industrial andconstruction applications where materials need to be positioned at height.

View our range of manual lifters and stackers:
https://www.mitaco.com.au/products/lifting-equipment/manual-lifters-stackers

MLWFH-181 – 3.1m Lift / 181kg Capacity – $1,500 inc GST

The MLWFH-181 Winch Lifter is a compact and portablelifting solution for positioning air conditioners, ductwork and other materialsat height. Its telescopic aluminium frame allows the lifter to be broken downquickly for transport and storage.

Features

2.5m standard lift height and 3.1m lift height with inverted forks
181kg lifting capacity

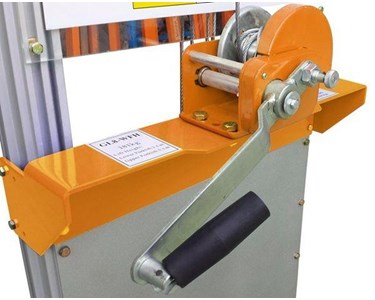

Brake winch controls for controlled ascent and descent
Brakes fitted to the main wheels
Top wheels assist with loading into vehicles and easier handling
Breaks down in less than a minute for easy transport and storage
Telescopic aluminium frame for strength, durability and rigidity
Heavy-duty steel construction
Safety red powder-coated finish for high visibility and added protection from wear and tear – colour may vary
Rubber wheels
Designed for air conditioning and duct installation applications
Optional Platform and Jib Arm available separately

Specifications

Model	MLWFH-181
Capacity	181kg
Minimum Fork Height	90mm
Maximum Fork Height	2500 / 3100mm
Fork Width	90mm
Fork Overall Width	500mm
Fork Length	570mm
Overall Size (L x W x H)	880 x 765 x 1715mm
Load Centre	254mm
Back Wheel	Ø200 x W55mm
Top Wheel	Ø100 x W40mm
Net Weight	60kg

MSCB181 – 3.1m Lift / 181kg Capacity – $2,000 inc GST

The MSCB181 Counterbalance Winch Lifter is designedfor positioning air conditioners, ductwork and other materials at height. Theintegrated counterbalance provides additional stability when lifting andpositioning loads, making it a practical choice for installation work.

Features

2.5m standard lift height and 3.1m lift height with inverted forks
181kg lifting capacity
Integrated counterbalance for additional stability during lifting
Brake winch controls for controlled ascent and descent
Brakes fitted to the main wheels
Top wheels assist with loading into vehicles and easier handling
Breaks down in less than a minute for easy transport and storage
Safety red powder-coated finish for high visibility and added protection from wear and tear
Heavy-duty steel construction
Designed for air conditioning and duct installation applications
Optional Platform and Jib Arm available separately

Specifications

Model	MSCB181
Capacity	181kg
Minimum Fork Height	40mm
Maximum Fork Height	2500 / 3100mm
Fork Width	90mm
Fork Overall Width	530mm
Fork Length	570mm
Overall Size (L x W x H)	1190 x 720 x 1730mm
Load Centre	254mm
Back Wheel	Ø200 x W55mm
Top Wheel	Ø100 x W40mm
Net Weight	191kg

MSW159 – 3.5m Lift / 159kg Capacity – $1,900 inc GST

The MSW159 Winch Lifter is an easy-to-manoeuvrelifting solution designed for positioning air conditioners, ductwork and othermaterials at height. Its telescopic aluminium frame and adjustable/removablestraddle legs provide flexibility for different lifting and access requirements.

Features

3m standard lift height and 3.5m lift height with inverted forks
159kg lifting capacity
Brake winch controls for controlled ascent and descent
Brakes fitted to the main wheels
Top wheels assist with loading into vehicles and easier handling
Breaks down in less than a minute for easy transport and storage
Telescopic aluminium frame for strength, durability and rigidity
Adjustable/removable straddle legs
Heavy-duty steel construction
Safety red powder-coated finish for high visibility and added protection from wear and tear
Rubber wheels
Designed for air conditioning and duct installation applications
Optional Platform and Jib Arm available separately

Specifications

Model	MSW159
Capacity	159kg
Minimum Fork Height	90mm
Maximum Fork Height	3080 / 3580mm
Fork Width	90mm
Fork Overall Width	630mm
Fork Length	570mm
Overall Size (L x W x H)	1065 x 765 x 2021mm
Load Centre	305mm
Back Wheel	Ø200 x W55mm
Top Wheel	Ø100 x W40mm
Net Weight	73kg

Optional Accessories

Optional Platform and Jib Arm accessories areavailable separately for the relevant models. Accessories can be selected andpurchased from the applicable product listings.

Spare Parts

Mitaco carries a range of spare parts for these WinchLifter / Duct Lifter models, helping keep your equipment operating reliablyand reducing downtime.

Designed for lifting goods and products only. Notsuitable for lifting people.
