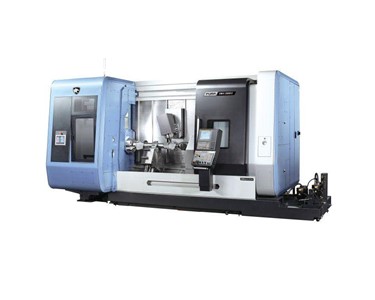

Multi Tasking CNC Turning Centres - PUMA SMX 2600S

Supplier: Hare & Forbes Machinery House

Multi Tasking CNC Turning Centres - PUMA SMX 2600S - Multi Tasking Sub Spindle CNC Turning Centre

Receive 1-3 days from order

Overview

The PUMA SMX series is a next-generation multi-tasking turning centre designed for high productivity and precision. By integrating multiple machine functionalities into one system, it streamlines operations, reducing machining time and complexity.
Engineered for accuracy, the PUMA SMX series minimises thermal deformation with advanced thermal compensation sensors, ensuring exceptional precision. Its ergonomic design enhances operator convenience, while efficient maintenance keeps downtime to a minimum.

Features

Perfect combination of three high-performance spindles to ensure machining stability, while operating under various cutting conditions.
All units are combined in an orthogonal direction to create a highly rigid structure that is intuitive and stable for users and guarantees stable performance under any processing conditions.
Powerful and fast machining capability across turning, milling, drilling, tapping and other multi-tasking operations ensures higher productivity and efficiency.
Minimised thermal deformation of the spindle and feed axis using oil cooler system
Adoption of roller LM guideways with high-rigidity and high precision
Equipped with 0.0001° B-axis and C-axis accuracy control functions
Front located tool magazine
Side-to-side movable swivelling Operation panel with adjustable Height (SMX 2100 : Swivelling & height adjustment possible)
Convenient ATC-magazine operation panel

Includes

Fanuc 31i-B5 – CUFOS - 5 Axis Simultaneous CNC Control with 19” Touchscreen iHMi
Max Machining Diametre: 660mm
Max Turning Length: 1540mm
Swing Over Bed: 660mm
Travel Y Axis: 300mm (±150mm)
Travel B Axis: 240° (±120° )
Machine Weight: 16,200kg
Chuck Size (Left & Right): 255mm
Bar Working Diameter: 81mm
Power Transmission: Built in Motor
Turning Spindle Power (Left & Right): 30kW
Turning Spindle Torque (Left & Right): 724Nm
Turning Spindle Speed (Left & Right): 4000RPM
Milling Spindle Taper: Capto C6
Milling Spindle Power: 26kW
Max Milling Spindle Speed: 12000RPM
Milling Spindle Torque: 124Nm
Milling Spindle Indexing: 360° @ 15° Clamping Increments
B Axis Drive: Servo Motor & Roller Gear Cam
ATC Capacity: 80 Tools
Max Tool Diameter Continuous: 90mm (130mm possible)
Max Tool Length: 450mm (From Gauge Line)
Through Spindle Coolant: 30Bar
Coolant Gun
Spindle Oil Cooler (Turning and Milling Spindles)
X Axis Ball Screw Cooling
Auto Tool Setter + Renishaw RMP60 Spindle Probe
Bar Feed Interface
Parts Unloader and Conveyor + Sub Spindle Work Ejector
Chip Conveyor Hinged Belt Type
IKC Software for Multitasking

Overview

Features

Perfect combination of three high-performance spindles to ensure machining stability, while operating under various cutting conditions.
All units are combined in an orthogonal direction to create a highly rigid structure that is intuitive and stable for users and guarantees stable performance under any processing conditions.
Powerful and fast machining capability across turning, milling, drilling, tapping and other multi-tasking operations ensures higher productivity and efficiency.
Minimised thermal deformation of the spindle and feed axis using oil cooler system
Adoption of roller LM guideways with high-rigidity and high precision
Equipped with 0.0001° B-axis and C-axis accuracy control functions
Front located tool magazine
Side-to-side movable swivelling Operation panel with adjustable Height (SMX 2100 : Swivelling & height adjustment possible)
Convenient ATC-magazine operation panel

Includes

Fanuc 31i-B5 – CUFOS - 5 Axis Simultaneous CNC Control with 19” Touchscreen iHMi
Max Machining Diametre: 660mm
Max Turning Length: 1540mm
Swing Over Bed: 660mm
Travel Y Axis: 300mm (±150mm)
Travel B Axis: 240° (±120° )
Machine Weight: 16,200kg
Chuck Size (Left & Right): 255mm
Bar Working Diameter: 81mm
Power Transmission: Built in Motor
Turning Spindle Power (Left & Right): 30kW
Turning Spindle Torque (Left & Right): 724Nm
Turning Spindle Speed (Left & Right): 4000RPM
Milling Spindle Taper: Capto C6
Milling Spindle Power: 26kW
Max Milling Spindle Speed: 12000RPM
Milling Spindle Torque: 124Nm
Milling Spindle Indexing: 360° @ 15° Clamping Increments
B Axis Drive: Servo Motor & Roller Gear Cam
ATC Capacity: 80 Tools
Max Tool Diameter Continuous: 90mm (130mm possible)
Max Tool Length: 450mm (From Gauge Line)
Through Spindle Coolant: 30Bar
Coolant Gun
Spindle Oil Cooler (Turning and Milling Spindles)
X Axis Ball Screw Cooling
Auto Tool Setter + Renishaw RMP60 Spindle Probe
Bar Feed Interface
Parts Unloader and Conveyor + Sub Spindle Work Ejector
Chip Conveyor Hinged Belt Type
IKC Software for Multitasking
