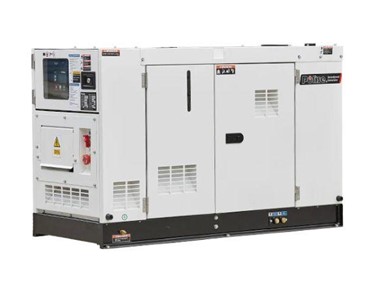

Powerlink - Diesel Generator 415V | 22kVA | DT20P5S Price Guide: $11,525 Get latest price

Read more...

To contact Gogopower Australia about Powerlink Diesel Generator 415V | 22kVA | DT20P5S use Get a quote.

Potise's 22kVA diesel generator is a robust unit powered by PowerLink engine ensuring the most stable electricity with the most optimum performance for stationary and prime power applications. It is a fully enclosed unit with a very compact design and water cooled. Diesel generator is able to run in Australian weather conditions perfectly. It comes with a quiet fully enclosed sound proof enclosure, remote start capable and automatic transfer switch plug.

This 22kVA diesel generator can be connected to both single phase and three phase appliances to the one generator-suitable for 240V and 415V appliances.

This diesel generator is mainly for smaller loads that can be located in industrial sites to power tools, commercial, agriculture and construction sites or act as a backup diesel generator for residentials.

Potise's range of PowerLink Powered Diesel Generators provide heavy duty and reliable power for a range of residential applications and are backed by a generator of 12 months/ 2000 hours for prime application or 24 months/ 500 hours warranty whichever comes first.
Key Features

• Product Model: DT20P5S
• PowerLink engine: 4D2.7G1
• Brushless alternator: PL1E
• PLC-920/ DSE4510 2 Wire Remote Start Control
• 32A Main Circuit Breaker
• Prime Power: 20kVA/ 16KW
• Standby Power: 22kVA/ 18KW
• Voltage/ Ampere: 415V/ 27.8A
• 3 Phase
• 50Hz/ 1500 RPM
• Dimensions L×W×H: 1850x846x1190mm
• Dry Weight: 648kg
• Fuel Tank Capacity: 140L
• Fuel Consumption (at 100% load capacity): 5.7L/ hour
• Base fuel tank: 24 hours @100% load capacity
• Sockets: No outlets, but can be installed upon request.

Safety Features

• Oil Pressure Level
• Fuel Level
• Coolant Level
• Coolant Temperature Level
• Emergency Stop Switch
• Battery Isolator
• ATS (automatic transfer switch) receptacle

Optional Extras

• Automatic Transfer Switches- to be connected to the diesel generator and the switchboard which will allow for automatic switching from your mains power supply to your back up diesel generator supply when mains power fails.
• Service Kit- contains all parts needed for scheduled servicing. Please refer to our maintenance page for the maintenance schedule interval. Gogopower has service kit for 250 hours service or the whole package of 2000 hours service kit.

Warranty
Be rest assured with Potise's PowerLink Powered Diesel Generator during the warranty period. We offer Australia wide support on all our Gogopower diesel generators with service contractors nationwide.

• Prime application: 2000 hours or 12 months. Whichever comes first.
• Standby application: 500 hours or 24 months. Whichever comes first.

Delivery
We can ship direct to you Australia wide. Alternatively, it can be pick up from either our Smithfield warehouse in NSW or Kenwick warehouse in WA.

Package contain

• Generator
• Documentation, ie: certificate of authenticity, test report, operational manual and wiring diagram

Read less...
