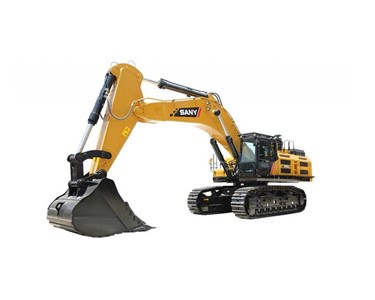

SANY Extra Large Excavators | SY870H
SANY - Extra Large Excavators | SY870H
78.6 TONNE MINING EXCAVATOR
SY8700H is a mining excavator manufactured by Sany Heavy Machinery in the field of large excavators. It adopts a high-pressure, large-flow fully-electrically-controlled hydraulic system. It is mainly aimed at heavy-duty mining conditions such as stone, coal, and metal.
With strong heavy-duty operation capability and high reliability as the first goal, the operation energy consumption can be optimized through sophisticated matching control technology. Compared with competing brands, it has the characteristics of “more reliable & durable, more efficient & energy-saving, more intelligent & comfortable, easier maintenance and lower maintenance cost”.
Key Features
- 5 - 5.8 m³ Bucket Capacity
- Designed for the mining sector for stones, coal, and metal
- Automac air conditioning
- The cab is designed with operator comfort in mind
General Information
- Weight
78600 kg
- Standard bucket capacity
5/5.4 m³
- Transport length
13002 mm
- Transport width
4320 mm
- Height over cabin/ROPS
3795 mm
- Engine
Isuzu GH-6WG1X
- Rated Power
377 kW
- Engine Revolutions
1800 rpm
- Emission Stage
Stage III
- Max. digging depth
7247 mm
- Max. digging reach
11703 mm
- Min. Swing radius
x mm
- Bucket digging force (ISO)
432/469 kN
- Arm digging force (ISO)
x kN
To contact Putzmeister Oceania Pty Ltd about SANY Extra Large Excavators | SY870H use Get a quote.
