Shuttle Fanless Digital Signage Player ...

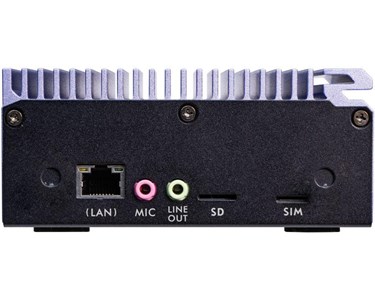

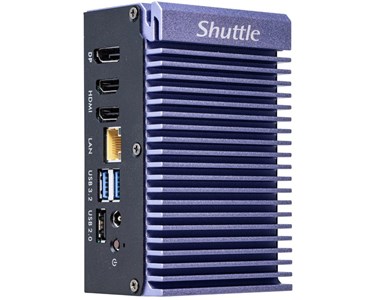

Shuttle - Fanless Digital Signage Player SPCEL12/13

Supplier: Metromatics

Fanless Digital Signage Player SPCEL12/13

The Shuttle SPCEL12/13 is a compact, fanless digital signage player designed for seamless triple 4K display output and robust performance in diverse environments.

Supports triple 4K display output for stunning visuals.

Receive 2-4 weeks from order

Overview

The Shuttle SPCEL12/13 is a cutting-edge digital signage player engineered for 24/7 operation. Its fanless design ensures quiet and dust-resistant performance, making it ideal for challenging environments. With the capability to drive up to three 4K displays simultaneously, it is perfect for applications in retail, transport, smart cities, and industrial settings.

Key Features

Optimised for Digital Signage: Supports up to three 4K displays via HDMI 2.0b and DisplayPort 1.4, ideal for video walls and advertising kiosks.
Ultra-Compact & Fanless: The 120 × 51 × 75 mm aluminium chassis fits behind screens, ensuring silent operation.
Powerful Performance: Equipped with Intel® Celeron® J6412 or Atom® x6413E processors and up to 32 GB DDR4-3200 memory.
Flexible Connectivity: Dual 2.5 GbE LAN with Wake-on-LAN, multiple USB ports, and M.2 slots for additional modules.
Wide Temperature Range: SPCEL13 model operates from –20 °C to +60 °C, suitable for outdoor environments.
Multiple Mounting Options: VESA, ear mount, and DIN rail support for easy installation.

Applications & Industries

The Shuttle SPCEL12/13 is versatile, serving various professional installations:

Retail & Quick Service Restaurants: Dynamic menu boards and interactive kiosks.
Transportation & Smart City: Passenger information systems and traffic displays.
Hospitality & Corporate: Hotel lobby signage and conference room schedulers.
Industrial & Manufacturing: Production dashboards and SCADA edge computing.
Healthcare & Education: Telehealth kiosks and campus digital signage.

Technical Specifications

Below are the detailed technical specifications of the Shuttle SPCEL12/13:

Specification	Detail
Processor	SPCEL12: Intel® Celeron® J6412; SPCEL13: Intel® Atom® x6413E
Memory	Up to 32 GB DDR4-3200
Storage	M.2 2280 (PCIe/SATA) and 2242 slots
Graphics	Intel® UHD Graphics with triple-display support
Display Outputs	1× HDMI 2.0b, 2× DisplayPort 1.4
Networking	2× 2.5 GbE LAN, Wake-on-LAN
Expansion	M.2 2230/3042/2280 for Wi-Fi, 4G/LTE, or AI module
Operating Temperature	SPCEL12: 0 °C to +40 °C; SPCEL13: –20 °C to +60 °C
Dimensions	120 × 51 × 75 mm
Mounting	VESA, ear mount, DIN rail
OS Support	Windows 11 64-bit, Linux 64-bit

Overview

Key Features

Optimised for Digital Signage: Supports up to three 4K displays via HDMI 2.0b and DisplayPort 1.4, ideal for video walls and advertising kiosks.
Ultra-Compact & Fanless: The 120 × 51 × 75 mm aluminium chassis fits behind screens, ensuring silent operation.
Powerful Performance: Equipped with Intel® Celeron® J6412 or Atom® x6413E processors and up to 32 GB DDR4-3200 memory.
Flexible Connectivity: Dual 2.5 GbE LAN with Wake-on-LAN, multiple USB ports, and M.2 slots for additional modules.
Wide Temperature Range: SPCEL13 model operates from –20 °C to +60 °C, suitable for outdoor environments.
Multiple Mounting Options: VESA, ear mount, and DIN rail support for easy installation.

Applications & Industries

The Shuttle SPCEL12/13 is versatile, serving various professional installations:

Retail & Quick Service Restaurants: Dynamic menu boards and interactive kiosks.
Transportation & Smart City: Passenger information systems and traffic displays.
Hospitality & Corporate: Hotel lobby signage and conference room schedulers.
Industrial & Manufacturing: Production dashboards and SCADA edge computing.
Healthcare & Education: Telehealth kiosks and campus digital signage.

Technical Specifications

Below are the detailed technical specifications of the Shuttle SPCEL12/13:

Specification	Detail
Processor	SPCEL12: Intel® Celeron® J6412; SPCEL13: Intel® Atom® x6413E
Memory	Up to 32 GB DDR4-3200
Storage	M.2 2280 (PCIe/SATA) and 2242 slots
Graphics	Intel® UHD Graphics with triple-display support
Display Outputs	1× HDMI 2.0b, 2× DisplayPort 1.4
Networking	2× 2.5 GbE LAN, Wake-on-LAN
Expansion	M.2 2230/3042/2280 for Wi-Fi, 4G/LTE, or AI module
Operating Temperature	SPCEL12: 0 °C to +40 °C; SPCEL13: –20 °C to +60 °C
Dimensions	120 × 51 × 75 mm
Mounting	VESA, ear mount, DIN rail
OS Support	Windows 11 64-bit, Linux 64-bit

Read less...
