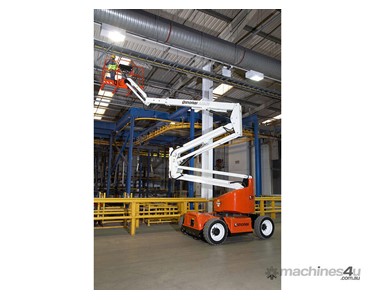

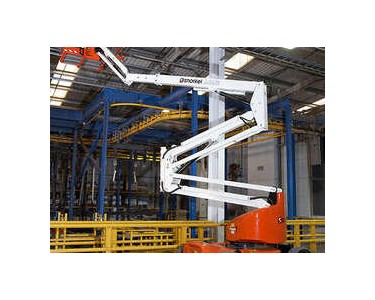

Articulated Boom Lift | A46JE

1/3

The A46JE is a high-performance articulated boom lift designed for safe and efficient work at height, making it ideal for construction and maintenance projects.

Zero tailswing and compact design for working safely in tight spaces.

The A46JE is a class-leading electric articulated boom lift boasting a compact design, zero tailswing, and excellent working envelope. It's engineered to lift personnel and tools safely to an impressive working height of up to 16.0m. This model also features a flexible jib boom making it highly manoeuvrable in confined spaces.

Key Features

Snorkel Guard™ secondary guarding system
Multi-function proportional controls
Zero tailswing for tight-space operation
Tri-entry platform for safety and convenience
Non-marking tyres suitable for indoor/outdoor use
On-board diagnostics display and hour meter
Tilt alarm, horn, battery charge indicator, and drive motion alarm
Platform overload system
Flashing amber light and power line to platform
2 year parts & labour, 5 year structural warranty

Specifications

Max. Working Height	16.0 m
Max. Platform Height	14.0 m
Max. Working Outreach	7.35 m
Clearance Height at Max. Outreach	7.46 m
Platform Size	1.0 m x 1.83 m
Overall Width	1.7 m
Overall Length	5.6 m
Stowed Height	2.0 m
Ground Clearance	152 mm
Platform Capacity (SWL)	227 kg
Max. Drive Height	14.0 m
Max. Wind Speed	12.5 m/s
Max. Drive Speed (stowed)	5.1 km/h
Max. Drive Speed (elevated)	0.8 km/h
Jib Length	1.5 m
Jib Arc	140°
Platform Rotation	160°
Turret Rotation	360° non-continuous
Tailswing	0 m
Raise/Lower Time	99 / 92 sec
Gradeability	30%
Inside Turning Radius	0.6 m
Outside Turning Radius	3.0 m
Tyres	Non-marking IN240/55D 17.5
Controls	Proportional
Drive System	2 wheel drive
Power Source	8 x 6V 360Ah batteries
Weight	6,664 kg

This model is ideal for construction and maintenance in tight spaces, offering expert advice, reliable brands, and nationwide delivery from Equipment Sales Australia.
