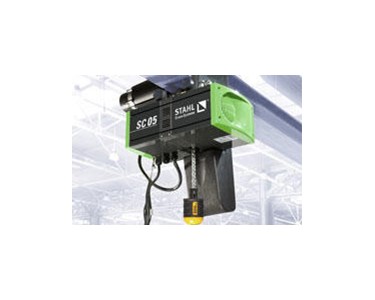

SC Chain Hoist

The SC Chain Hoist is a robust and intelligent lifting solution designed for reliable performance and maximum safety in demanding industrial environments.

Patented 5-pocket chain sprocket reduces wear and increases safety.

The SC chain hoist extends the world's largest chain hoist range and supplements the proven ST programme. Its modular construction allows for rapid setup with plug-in components and easy maintenance access. The range initially includes three frame sizes (SC 02, SC 05, SC 10), covering safe working loads (S.W.L.) from 63 kg to 2,500 kg. It can be configured as a stationary hoist (with hook, eye, or rigid suspension) or as a mobile version with manual or electric trolleys.

Main Features

Patented 5-pocket chain sprocket for reduced chain wear and greater safety
All electrical components use standard plug-in connections
Robust, high-tensile powder-coated aluminium case
Integrated hoist limit switch for top and bottom hook positions
Short, compact, and straight-line construction
Variety of hoisting speeds and higher S.W.L. by 25%
Directly active load limiting by innovative slipping clutch design
Temperature range: -20 °C to +50 °C
Electric trolley option with frequency control
Designed to high FEM standards

Specifications

Safe Working Load (S.W.L.)	63 kg – 2,500 kg
Frame Sizes	SC 02, SC 05, SC 10
Operational Temperature	-20 °C to +50 °C
Case Material	Powder-coated aluminium
Mounting Options	Stationary (hook, eye, rigid) or trolley mounted
Control Options	Push or electric trolleys

?Innovative Design?

The patented 5-pocket chain sprocket improves load stability and minimises wear by engaging an extra cog with the vertical chain link for better positive locking and increased load capacity. A new alignment of the brake, slipping clutch, and motor ensures that the clutch is disengaged during braking, which eliminates any impact on the system at standstill, enhancing safety and longevity.

To contact SLS Cranes about Stahl SC Chain Hoist use Get a quote.

Main Features

Patented 5-pocket chain sprocket for reduced chain wear and greater safety
All electrical components use standard plug-in connections
Robust, high-tensile powder-coated aluminium case
Integrated hoist limit switch for top and bottom hook positions
Short, compact, and straight-line construction
Variety of hoisting speeds and higher S.W.L. by 25%
Directly active load limiting by innovative slipping clutch design
Temperature range: -20 °C to +50 °C
Electric trolley option with frequency control
Designed to high FEM standards

Specifications

Safe Working Load (S.W.L.)	63 kg – 2,500 kg
Frame Sizes	SC 02, SC 05, SC 10
Operational Temperature	-20 °C to +50 °C
Case Material	Powder-coated aluminium
Mounting Options	Stationary (hook, eye, rigid) or trolley mounted
Control Options	Push or electric trolleys

?Innovative Design?
