Upgradeable multi-range FT-IR system for comprehensive material analysis.

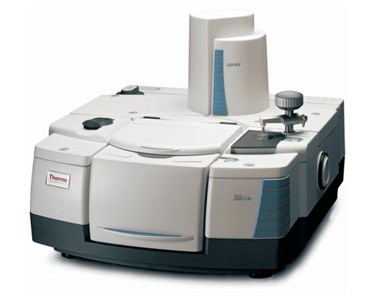

The iS 50 FT-IR spectrophotometer is purpose-built for advanced material analysis. With an upgradeable multi-spectral range and simple operation, it enables fast, definitive results in demanding lab environments. Optional modules and accessories optimise its flexibility for various analytical applications.

Key Features

Upgradeable from a basic FT-IR bench-top system to a fully automated spectral instrument covering far-infrared to visible range
Multiple source and detector options:
- Dual light source: Polaris™ long-life infrared, tungsten-halogen white light
- Up to 9 selectable detectors
Automatic beam splitter exchanger (ABX)
Integrated, motorised attenuators and filters (optional)
Complete gold optics (aluminium available)
Integrated validation wheel for system diagnostics
Supports existing and new Smart accessories, including:
- Integrated diamond ATR for mid & far IR
- Probenraum-Raman, NIR module with integrating sphere
- TGA-IR, GC-IR modules
Motorised polariser available (optional)
PC connectivity via USB 2.0

Typical Applications

Polymers and rubbers
Forensics
Pharmaceuticals
Pigments, paints, inks
Food, flavours, oils
General laboratory analysis

Specifications

Spectral Range	15 – 27,000 cm^-1
Spectral Resolution	Better than 0.09 cm^-1
Dimensions (Base Only)	62.6 × 69.8 × 27.6 cm
Dimensions (Incl. ABX)	62.6 × 69.8 × 50.8 cm
Weight (Base Only)	60 kg
Weight (Incl. ABX)	64 kg
Voltage	100–240 V
Humidity Protection	Encapsulated optics
Interface	PC (USB 2.0)
System Diagnostics	ASTM E1421, ISO/GLP compliant

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Fisher Scientific Nicolet™ iS50 FTIR Spectrometer use Get a quote.
