TJK STIRRUP BENDER (BAR) WGZ16B-1 WGZ16B-1 ...

TJK STIRRUP BENDER (BAR) WGZ16B-1 - WGZ16B-1 STIRRUP BENDER ( BAR )

Supplier: Sing Reo PTE LTD

WGZ16B-1 STIRRUP BENDER ( BAR )

1/6

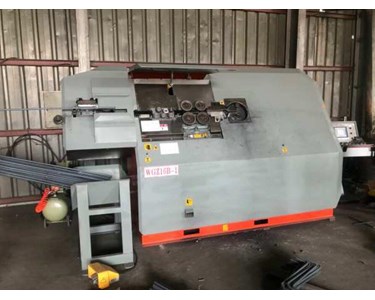

The WGZ16B-1 (often listed as part of the WG16B / WGZ16 Series) by TJK Machinery is an industrial CNC automatic rebar and wire stirrup bender. It is engineered for high-precision, high-volume processing of steel coil and wire into custom rebar shapes

Video for TJK STIRRUP BENDER (BAR) WGZ16B-1 WGZ16B-1 STIRRUP BENDER ( BAR )

The WGZ16B-1 (often listed as part of the WG16B / WGZ16 Series) by TJK Machinery is an industrial CNC automatic rebar and wire stirrup bender. It is engineered for high-precision, high-volume processing of steel coil and wire into custom rebar shapes and stirrups for concrete reinforcement.

Key Highlights & Features

Processing Capacity: Handles single-wire processing up to 16 mm diameter and double-wire processing up to 12 mm

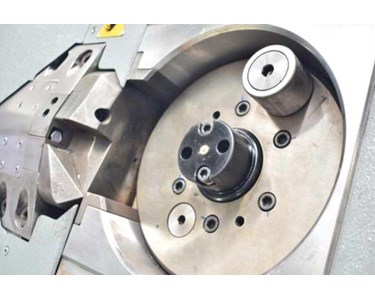

Automated Straightening & Bending: Features a patented multi-roller straightening system (horizontal and vertical rollers) paired with bidirectional servo-driven bending heads for continuous, high-speed production.
CNC & PLC Control: Integrated touchscreen console that stores preset stirrup shapes, allowing seamless switching between geometric profiles without manual recalibration.
High Precision: Uses full closed-loop servo control to deliver strict length tolerances and angle precision
Application: Widely used in precast concrete plants, rebar processing centers, and large-scale infrastructure construction projects.

Key Operational Benefits?

High Automation & Productivity: Combines wire pay-off, straightening, bending, and cutting into a single automated line. It operates continuously without needing to pause or stop while switching between different stirrup angles or geometry shapes.

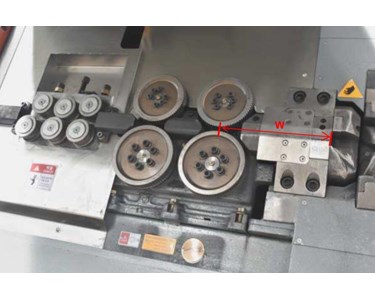

Patented Multi-Roller Straightening: Features a patented multi-roller straightening system (horizontal and vertical sets) equipped with 4-wheel servo-driven pulling rollers to eliminate axial wire torsion and prevent material twisting.
4-Sided Reversible Cutter: The cutting blades feature a four-sided usable design. Once a blade edge wears down, it can be rotated, increasing cutter service life by up to 4 times and reducing maintenance costs.
High Precision & Low Waste: Full closed-loop AC servo drives ensure precise length feeding and tight angular control, reducing steel rebar material scrap.

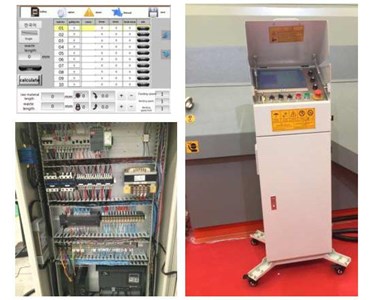

User-Friendly Memory Control: Integrated CNC touchscreen control system stores hundreds of preset standard geometric shapes. Straightening memory parameters reduce changeover times when switching wire gauges.

Key Highlights & Features

Processing Capacity: Handles single-wire processing up to 16 mm diameter and double-wire processing up to 12 mm
Automated Straightening & Bending: Features a patented multi-roller straightening system (horizontal and vertical rollers) paired with bidirectional servo-driven bending heads for continuous, high-speed production.
CNC & PLC Control: Integrated touchscreen console that stores preset stirrup shapes, allowing seamless switching between geometric profiles without manual recalibration.
High Precision: Uses full closed-loop servo control to deliver strict length tolerances and angle precision
Application: Widely used in precast concrete plants, rebar processing centers, and large-scale infrastructure construction projects.

Key Operational Benefits?

High Automation & Productivity: Combines wire pay-off, straightening, bending, and cutting into a single automated line. It operates continuously without needing to pause or stop while switching between different stirrup angles or geometry shapes.
Patented Multi-Roller Straightening: Features a patented multi-roller straightening system (horizontal and vertical sets) equipped with 4-wheel servo-driven pulling rollers to eliminate axial wire torsion and prevent material twisting.
4-Sided Reversible Cutter: The cutting blades feature a four-sided usable design. Once a blade edge wears down, it can be rotated, increasing cutter service life by up to 4 times and reducing maintenance costs.
High Precision & Low Waste: Full closed-loop AC servo drives ensure precise length feeding and tight angular control, reducing steel rebar material scrap.
User-Friendly Memory Control: Integrated CNC touchscreen control system stores hundreds of preset standard geometric shapes. Straightening memory parameters reduce changeover times when switching wire gauges.

Read less...
