Tuttnauer - BSL-3 & BSL-4 Biocontainment Laboratory Autoclaves

Supplier: Thermo Fisher Scientific Australia Pty Ltd

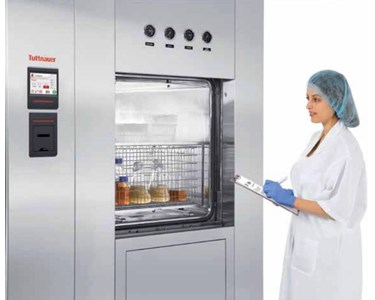

BSL-3 & BSL-4 Biocontainment Laboratory Autoclaves

Designed for maximum safety, these advanced autoclaves are tailored for biocontainment applications in BSL-3 and BSL-4 laboratories, ensuring reliable sterilisation of hazardous materials.

Highest bio-containment standards for safe sterilisation in BSL-3/4 labs.

The autoclaves are specifically engineered for BSL-3 and BSL-4 laboratory environments where biological containment is critical. Tuttnauer’s extensive experience ensures the systems provide maximum protection and reliable sterilisation.

Key Design Features

Chamber and Piping: Constructed from 316L grade stainless steel for the chamber, piping, and fittings. Inner chamber walls are polished to Ra < 0.4µm for a smooth, contamination-resistant surface.
Biological Seal: Advanced bio-shield system offers a hermetically sealed barrier, using both welded stainless steel plates and flexible neoprene wall seals to prevent microorganisms from crossing zones.
Effluent & Filter Sterilisation: All effluent and gases are sterilised with high-temperature processes. Options include thermal or double filtration (0.2 µm filters) to meet strict BSL-4 requirements.
Safety Mechanisms: Fitted with dedicated safety valves, expansion vessels, and microbiological sanitary air filters to ensure secure operation.
Easy Loading: Includes pull-out trays, loading carts and transfer carriages, and automatic loading options for safe, efficient material handling within the chamber.

Control & Monitoring Systems

Advanced Bacsoft control system with optional Allen Bradley PLC.
7” multi-colour touchscreen HMI (10” optional), multilingual (26 languages), graphical trends of temperature and pressure.
Data recording for 200 previous cycles, barcode reader support, and multiple user access levels with password protection.
Remote monitoring with R.PC.R software, supporting real-time display, technical support, and optional SCADA system compatibility.
Automatic reporting and PDF generation capabilities.

Models & Chamber Volumes

Series	Chamber Dimensions (W×H×D, mm)	Volume (L)	Door Options
55 BSL	508×508×970 / 508×508×1210	250 / 310	Manual / Vertical Sliding
66 Mid Range BSL	610×610×915, 610×610×1215, 660×710×1295, 660×710×1620, 660×710×1970	340 / 450 / 610 / 760 / 920	Vertical Sliding / Automatic Hinged
69 Large Capacity BSL	610×910×915, 610×910×1215, 610×910×1515, 610×910×1815	510 / 680 / 840 / 1010	Horizontal Sliding / Automatic Hinged
Bulk BSL Series	Floor: 910×1220×1360, 920×1220×1510, 920×1220×1820, 920×1220×2520, 920×1220×3630 Pit: 920×1580×1520, 920×2200×1520, 920×2200×2200, 1070×2200×2185, 1250×2200×2185, 1830×2200×2195	1500 / 1700 / 2000 / 2800 / 4000 / 2210 / 3000 / 4500 / 5145 / 6100 / 8840	Horizontal Sliding (Automatic)

Technical & Quality Standards

Complies with global standards including 2014/68/EU Pressure Equipment Directive, EN 285:2015, ASME, ISO 9001:2015, ISO 13485:2016, FDA QSR, RoHS, among others.

Additional Features

Sterilisation temperature range: 105°C to 138°C, with optional isothermal/disinfection range: 70°C to 95°C.
PID pressure control, filter replacement notifications, diagnostic tools, full qualification documentation (IQ/OQ/PQ) available.

Ideal for hospitals, universities, research institutes, and laboratories requiring strict bio-containment for infectious samples and hazardous waste.

To contact Thermo Fisher Scientific Australia Pty Ltd about Tuttnauer BSL-3 & BSL-4 Biocontainment Laboratory Autoclaves use Get a quote.

Key Design Features

Chamber and Piping: Constructed from 316L grade stainless steel for the chamber, piping, and fittings. Inner chamber walls are polished to Ra < 0.4µm for a smooth, contamination-resistant surface.
Biological Seal: Advanced bio-shield system offers a hermetically sealed barrier, using both welded stainless steel plates and flexible neoprene wall seals to prevent microorganisms from crossing zones.
Effluent & Filter Sterilisation: All effluent and gases are sterilised with high-temperature processes. Options include thermal or double filtration (0.2 µm filters) to meet strict BSL-4 requirements.
Safety Mechanisms: Fitted with dedicated safety valves, expansion vessels, and microbiological sanitary air filters to ensure secure operation.
Easy Loading: Includes pull-out trays, loading carts and transfer carriages, and automatic loading options for safe, efficient material handling within the chamber.

Control & Monitoring Systems

Advanced Bacsoft control system with optional Allen Bradley PLC.
7” multi-colour touchscreen HMI (10” optional), multilingual (26 languages), graphical trends of temperature and pressure.
Data recording for 200 previous cycles, barcode reader support, and multiple user access levels with password protection.
Remote monitoring with R.PC.R software, supporting real-time display, technical support, and optional SCADA system compatibility.
Automatic reporting and PDF generation capabilities.

Models & Chamber Volumes

Series	Chamber Dimensions (W×H×D, mm)	Volume (L)	Door Options
55 BSL	508×508×970 / 508×508×1210	250 / 310	Manual / Vertical Sliding
66 Mid Range BSL	610×610×915, 610×610×1215, 660×710×1295, 660×710×1620, 660×710×1970	340 / 450 / 610 / 760 / 920	Vertical Sliding / Automatic Hinged
69 Large Capacity BSL	610×910×915, 610×910×1215, 610×910×1515, 610×910×1815	510 / 680 / 840 / 1010	Horizontal Sliding / Automatic Hinged
Bulk BSL Series	Floor: 910×1220×1360, 920×1220×1510, 920×1220×1820, 920×1220×2520, 920×1220×3630 Pit: 920×1580×1520, 920×2200×1520, 920×2200×2200, 1070×2200×2185, 1250×2200×2185, 1830×2200×2195	1500 / 1700 / 2000 / 2800 / 4000 / 2210 / 3000 / 4500 / 5145 / 6100 / 8840	Horizontal Sliding (Automatic)

Technical & Quality Standards

Complies with global standards including 2014/68/EU Pressure Equipment Directive, EN 285:2015, ASME, ISO 9001:2015, ISO 13485:2016, FDA QSR, RoHS, among others.

Additional Features

Sterilisation temperature range: 105°C to 138°C, with optional isothermal/disinfection range: 70°C to 95°C.
PID pressure control, filter replacement notifications, diagnostic tools, full qualification documentation (IQ/OQ/PQ) available.

Ideal for hospitals, universities, research institutes, and laboratories requiring strict bio-containment for infectious samples and hazardous waste.
