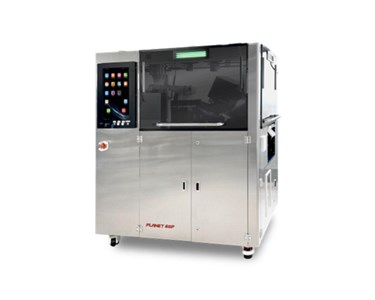

Vision Inspection System | 6GP series ...
Standard Model
Supply area
Feeding area
Inspection area
Discharge area
Specification Category | Parameter | Detail / Value |
Physical Dimensions | Overall Size (W × L × H) | 1,900 mm x 1,340 mm x 2,032 mm |
Tablet Capacity | 5 mm Round Tablet | Up to 350,000 tablets/hr |
10 mm Oval Tablet | Up to 200,000 tablets/hr | |
Capsule Capacity | Size No. 5 | Up to 150,000 capsules/hr |
Size No. 4 | Up to 140,000 capsules/hr | |
Size No. 3 | Up to 130,000 capsules/hr | |
Size No. 2 | Up to 120,000 capsules/hr | |
Size No. 1 | Up to 110,000 capsules/hr | |
Size No. 0 | Up to 100,000 capsules/hr | |
Size No. 00 | Up to 90,000 capsules/hr | |
Hardware Setup | Vision System | 15 sets of 2D Cameras + 2 sets of 3D Cameras (TC Version) |
Illumination | Integrated high-efficiency LED lighting | |
User Interface | 21-inch Color Touch Monitor | |
Software & Control | Operating System | Windows 7 (Embedded Standard) |
Storage & Memory | 1 TB Internal Memory | |
Data Security & Backup | Built-in Back-up & Recovery Program | |
Regulatory Compliance | FDA 21 CFR Part 11 compliant |
To contact Pharma Machinery about Vision Inspection System | 6GP series Standard Model use Get a quote.
Standard Model
Supply area
Feeding area
Inspection area
Discharge area
Specification Category | Parameter | Detail / Value |
Physical Dimensions | Overall Size (W × L × H) | 1,900 mm x 1,340 mm x 2,032 mm |
Tablet Capacity | 5 mm Round Tablet | Up to 350,000 tablets/hr |
10 mm Oval Tablet | Up to 200,000 tablets/hr | |
Capsule Capacity | Size No. 5 | Up to 150,000 capsules/hr |
Size No. 4 | Up to 140,000 capsules/hr | |
Size No. 3 | Up to 130,000 capsules/hr | |
Size No. 2 | Up to 120,000 capsules/hr | |
Size No. 1 | Up to 110,000 capsules/hr | |
Size No. 0 | Up to 100,000 capsules/hr | |
Size No. 00 | Up to 90,000 capsules/hr | |
Hardware Setup | Vision System | 15 sets of 2D Cameras + 2 sets of 3D Cameras (TC Version) |
Illumination | Integrated high-efficiency LED lighting | |
User Interface | 21-inch Color Touch Monitor | |
Software & Control | Operating System | Windows 7 (Embedded Standard) |
Storage & Memory | 1 TB Internal Memory | |
Data Security & Backup | Built-in Back-up & Recovery Program | |
Regulatory Compliance | FDA 21 CFR Part 11 compliant |
To contact Pharma Machinery about Vision Inspection System | 6GP series Standard Model use Get a quote.
