WindShift Modular Fans

Supplier: Norman G. Clark

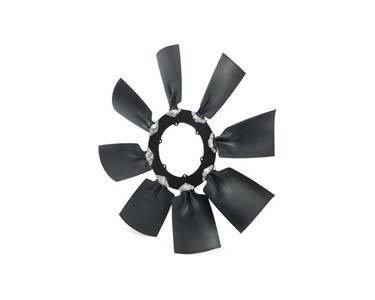

WindShift Modular Fans

WindShift 0Modular Fans offer greater flexibility in design and manufacturing for optimal performance plus faster, easier testing and prototyping.

Receive 1-3 days from order

The fans are constructed with innovative clamshell knuckles that clamp each blade to the steel-center disk. This allows blades to be set to a specific pitch angle. These fans feature a selection of computer-optimized blade designs for maximum efficiency and advanced engine cooling. WindShift fans are available in a variety of blade configurations, rotation options and center-disk diameters.

Applications

Agriculture
Industrial
Construction
Specialty markets
Variety of other off-highway equipment

Features & Benefits

Computer-optimized blade design for airflow stability, minimal deflection and efficient cooling
Innovative clamshell knuckles, clamp each blade to steel-center disk, allowing numerous blade pitch angles for optimized airflow characteristics and design flexibility
Virtually any pilot or bolt circle available to accommodate a wide variety of equipment designs
Short lead times to meet tight schedules
Competitively priced
Swept and unequally spaced blades for reduced noise
Clockwise and counterclockwise options and virtually any pilot or bolt circle available for wide application

High-Capacity/High-Pressure Blade Design

Diameter	31.89″–48.03″ [810–1220 mm]
Pitch Width	3.39-3.65 [86-92 mm]

Airfoil Blade Design – WSC

Diameter	25.2″–40.16″ [640–1020 mm]
Pitch Width	WSC 1.88 – 3.74 [48 – 95 mm]

Airfoil Blade Design – WSD

Diameter	31.89″–51.97″ [810–1320 mm]
Pitch Width	WSD 2.09″ – 4.14″ [53 – 105 mm]

Swept Blade Design

Diameter	24.02″–40.94″ [610–1040 mm]
Pitch Width	WSE 2.44 – 5.94 [62 – 151 mm]

High-Capacity/High-Pressure Blade Design

Diameter	31.89″–48.03″ [810–1220 mm]
Pitch Width	3.39-3.65 [86-92 mm]

Airfoil Blade Design – WSC

Diameter	25.2″–40.16″ [640–1020 mm]
Pitch Width	WSC 1.88 – 3.74 [48 – 95 mm]

Airfoil Blade Design – WSD

Diameter	31.89″–51.97″ [810–1320 mm]
Pitch Width	WSD 2.09″ – 4.14″ [53 – 105 mm]

Swept Blade Design

Diameter	24.02″–40.94″ [610–1040 mm]
Pitch Width	WSE 2.44 – 5.94 [62 – 151 mm]

Read less...
