AAA Trailers - Refrigerated Trailer | 22 Pallet Get latest price

Read more...

To contact AAA Trailers about AAA Trailers Refrigerated Trailer | 22 Pallet use Get a quote.

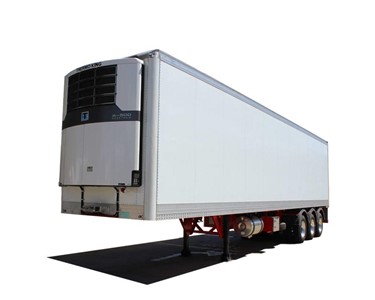

The AAA Trailers – Flat Top Refrigerated Trailer (22 Pallet) is purpose-built for linehaul and temperature-controlled freight. It offers the reliability and performance you need to transport refrigerated goods across Australian conditions. At 13.72m in length with a tare weight of 9.3 tonnes and a 47-tonne ATM, it delivers strong payload capacity while keeping goods at the right temperature with a Thermo King unit of your choice in single or dual-zone configuration.

The high-tensile steel mainframe, HD extruded duct aluminium floor, and insulated aluminium panel walls provide strength and thermal efficiency, while K-Hitch tri-axle airbag suspension, 22.5” drum brake axles, and a multi-volt EBS brake kit ensure safe, stable transport. Standard features include loading bars for double stacking pallets, LED lighting, stainless steel water tank, and toolboxes, with optional extras available to suit specific freight operations.

SPECIFICATIONS

Capacity & Dimensions

• ATM: 47T
• GTM: 23.5T
• Tare Weight: Approx. 9.3T
• Length: 13.72m

Refrigeration System

• Refrigerated Unit: Thermo King unit of choice
• Zone Options: Single Zone / Dual Zone

Construction & Frame

• Mainframe: High-tensile steel grade
• Floor: HD extruded duct aluminium floor

Walls & Insulation

• Panels: Aluminium panel with polyurethane insulation
• Side Wall Insulation: 45mm
• Roof, Floor, Front Wall Insulation: 100mm
• Rear Door Insulation: 76mm

Load Handling & Equipment

• Loading Bars: For double-stacking pallets

Axles, Suspension & Wheels

• Axles: K-Hitch 22.5” drum brake axles
• Suspension: K-Hitch tri-axle airbag
• Landing Legs: K-Hitch 2-speed
• Wheels: 10/285 PCD dual steel rims (aluminium optional)
• Tyres: 11R22.5
• Spare Wheel Carrier: Dual (spare wheels optional)

Brake & Electrical Systems

• Brake Kit: EBS multi-volt 12/24V
• Lighting: Full LED

Onboard Equiptment

• Water Tank: 30L stainless steel
• Toolboxes: Steel with stainless steel “T” handles for storing loading bars
• Mudguards:
  • Plastic radius guards with AAA Trailers mudflaps
  • Quarter guards front and rear

Optional Extras

• Road train bracket: Coupling, air and electrical
