Anritsu - Food Metal Detector | Large model

Supplier: J.L.Lennard

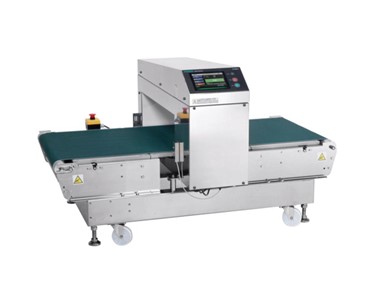

Food Metal Detector | Large model

Anritsu’s new large metal detector brings the unrivaled performance of M6-h dual-frequency technology to larger bulk and packaged products.

Receive 1-3 days from order

Large Aperture Metal Detector is suitable for products in bulk flow or large bags and cartons.

Specifications

Model	KDS7025ADW
Pass height	250 mm
Maximum pass width	700 mm
Belt width	600 mm
Display	7-inch color TFT LCD
Operation method	Touch panel (Start, Stop, and Home are direct push buttons)
Preset memory	Maximum 200
Product packaging	Both general and aluminum-evaporated-packaging products
Detection method	Simultaneous 2-frequency magnetization detection method
Belt speed¹	26 m/min (50 Hz), 31 m/min (60 Hz)
Maximum product weight²	Maximum 50 kg
Metal detection	Rejection signal output and beep, or belt stop and beep
Power supply³	100 Vac ± 10%, single phase, 50/60 Hz; 110 Vac ± 10%, 115 Vac ± 10%, 120 Vac ± 10%, single phase, 60 Hz; 200 Vac ± 10%, 220 Vac ± 10%, 230 Vac ± 10%, single phase, 50/60 Hz; or 240 Vac ± 10%, single phase, 50 Hz
Power consumption	400 VA, rush current 50 A (typ.) (20 ms or less)
Maximum mass	205 kg
Environmental conditions	0 °C to 40 °C, relative humidity 30% to 85%, non-condensing
Protection class	IP66 compliance
Exterior	stainless steel (SUS304)
Data output	USB port as an option (USB2.0), Ethernet interface as an option (10BASE-T, 100BASE-TX)

1: Belt speeds other than those listed above are available as options. Contact our sales representatives for details.
2: Sum total of product weight on the conveyor
3: Specify one of these power requirements for use when ordering.
Note: The shape (length, width and height) of products to be inspected varies with the rejector type.
Note: The noise level of the metal detectors does not exceed 70 dB (A).

To contact J.L.Lennard about Anritsu Food Metal Detector | Large model use Get a quote.
