Extremely compact and flexible bag-in-box cartoning with fast format changeover.

Overview

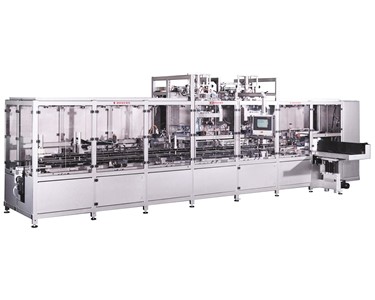

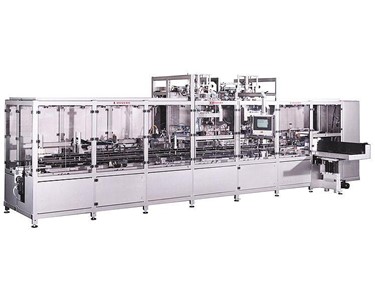

The vertical cartoning machine offers a compact and adaptable packaging system, with one or two integrated Form Fill and Seal machines, eliminating the need for additional conveyors or transfer systems. It is capable of producing up to 120 folding boxes per minute, with vertical transfer of bags directly into boxes for optimal efficiency.

Key Features

Supports various bag top shapes.
Compact and flexible design for space-saving installation.
Safe and secure box erection using a powered rotation picker and forced box erection system.
Gentle, oscillating chain movements ensure secure product handling.
Programmable 3-dimensional format change for fast, reproducible product changeover.
Intuitive, graphical user interface in national language for easy operation.
Optional modules for compacting products, achieving up to 95% box fill ratio—ideal for products like tea or aerated powders.

Unique Advantages

In addition to its patented automatic box erection and format adjustment, the machine can handle product compaction within the box, offering higher filling densities than typical horizontal machines.

Bag and Box Configurations

Bag in folded box
Bag without folded box
Product filled directly into folding box

90° folding of the top fin
Label or adhesive tape as reclosure options

Technical Data

Model	Box Size A (mm)	Box Size B (mm)	Box Size H (mm)
CMV 160	50 – 160	15 – 100	80 – 320
CMV 220	60 – 220	20 – 100	120 – 320

Special sizes and production capacities available on request.

To contact J.L.Lennard about Rovema Vertical Cartoning Machine CMV Bag-in-box use Get a quote.
