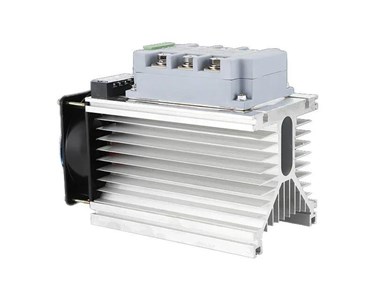

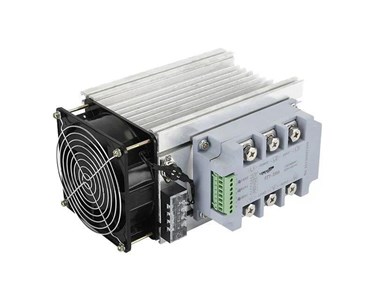

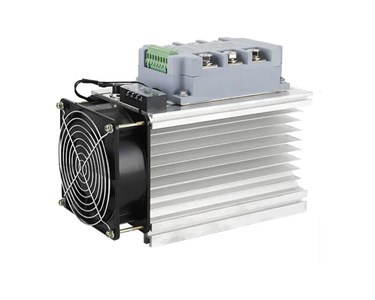

Three Phase SCR Power Controller 60A-450A - LTSCR Series

1/4

A three-phase SCR power controller for proportional control of industrial heaters and other compatible three-phase loads. The LTSCR range covers 60 A to 450 A and supports analog control inputs, soft start and optional RS485 communication.

60–450 A SCR controller

Overview

The Lorentzzi LTSCR series is an economical three-phase SCR power controller intended for industrial power regulation. It can regulate output from zero to the incoming line voltage and is available for three-phase 3-wire or 4-wire systems across a stated 100-450 VAC input range.

Key features

Three-phase 100-450 VAC input range stated by manufacturer
Suitable for 3-wire or 4-wire systems depending on configuration
Current ratings from 60 A to 450 A

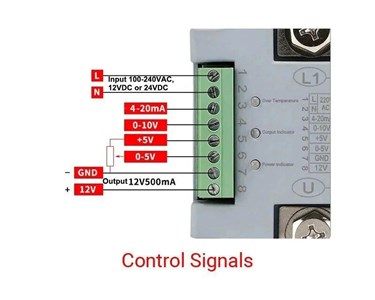

0-5 VDC, 0-10 VDC, 4-20 mA or 10 kOhm potentiometer control options
Optional RS485 communication
Soft-start function; manufacturer states 2 seconds as default
Over-temperature protection with shutdown above stated threshold
Power/output/over-temperature status indication
Auxiliary 12 VDC, 500 mA output listed as available
Controller body dimension stated as 140 x 96 x 49 mm excluding heatsink/fan

Applications of this product

Three-phase industrial heaters
Ovens, furnaces and dryers
Plastics and process machinery
Industrial transformer and inductive-load control where compatible
Process heating systems controlled by PLC or PID

Why choose this product

High-current three-phase power regulation up to 450 A
Analog control plus optional RS485 supports modern automation systems
Soft start can reduce abrupt power application
APS can assist with application sizing, panel cooling, protection and control integration
