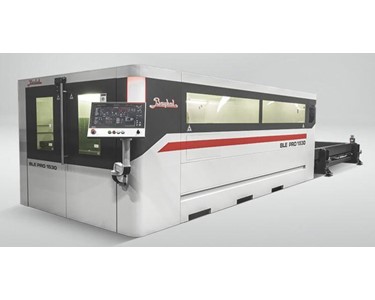

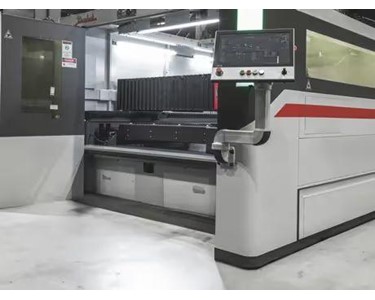

Baykal BLE Pro Laser Cutting Machine

Baykal - BLE Pro Laser Cutting Machine Price Guide: $400,000

Supplier: Performatec

BLE Pro Laser Cutting Machine

1/3

The Baykal BLE PRO laser cutting machine series stands at the forefront of fibre laser technology. With its compact footprint and unmatched cut quality, the BLE PRO range of laser cutters will elevate your workshop's capabilities.

Receive 1-2 weeks from order

The BLE Pro series represents a leap forward in laser cutting machine technology, designed to meet the exacting standards of modern manufacturing. Its blend of efficiency, precision, and versatility make it a valuable addition to any workshop, ensuring your business stays ahead in a competitive market.

The BLE Pro CNC Laser Cutter combines a sleek design with high-tech features such as the Precitec ProCutter 2.0 and Beckhoff servo motors for unmatched cut quality and dependability across various materials, including stainless steel and aluminium.

This series is tailored for precision and efficiency in every task. Its robust construction, cutting-edge features, and versatile performance are crafted to satisfy the stringent requirements of contemporary manufacturing.

BLE-Pro: Table Specs

Series:	BLE1530-Pro	BLE2040-Pro	BLE2060-Pro
work envELOPE	1524 X 3048 mm	2032 X 4064 mm	2032 X 6096 mm
CNC Control Unit:	Beckhoff CNC (18.5 "TFT - Windows 10)
Motors / Drivers:	Beckhoff
Rapid Traverse:	95 m/min	115 m/min	115 m/min
Vector Speed:	135 m/min	145 m/min	145 m/min
Acceleration:	1.5 G (15 m/s2)	1.8 G (18 m/s2)	1.8 G (18 m/s2)
Abs. Pos. Accuracy:	±0.03 mm
Repeatability:	±0.05 mm
Feed Rate:	Programmable up to 50 m/min
Transfer Table:	Motorised - Automatic Exchange
Nesting Software:	LANTEK Expert Cut II or Metalix AutoNest PRO

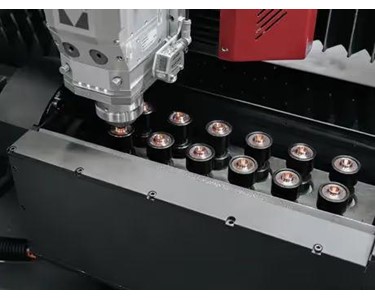

Nozzle Clean/Calib.	Automatic
Fume Extractor:	Optional

BLE-Pro: Laser Specs

Laser Power:	1 kW to 6kW
Cutting Head (Standard):	Precitec LightCutter (Auto focus)
Cutting Head (Optional):	Precitec ProCutter
Focusing Lenses:	150 mm

BLE-Pro: Cutting Capacities (mm)

Material \| Pwr:	1kW	2kW	3kW	4kW	6kW
Mild Steel:	12	15	18	20	25
s.Steel:	4	8	10	12	20
Alum:	3	6	8	12	20
Copper:	2	3	4	6	8
BRass	3	6	8	10	12

To contact Performatec about Baykal BLE Pro Laser Cutting Machine use Get a quote.

BLE-Pro: Table Specs

Series:	BLE1530-Pro	BLE2040-Pro	BLE2060-Pro
work envELOPE	1524 X 3048 mm	2032 X 4064 mm	2032 X 6096 mm
CNC Control Unit:	Beckhoff CNC (18.5 "TFT - Windows 10)
Motors / Drivers:	Beckhoff
Rapid Traverse:	95 m/min	115 m/min	115 m/min
Vector Speed:	135 m/min	145 m/min	145 m/min
Acceleration:	1.5 G (15 m/s2)	1.8 G (18 m/s2)	1.8 G (18 m/s2)
Abs. Pos. Accuracy:	±0.03 mm
Repeatability:	±0.05 mm
Feed Rate:	Programmable up to 50 m/min
Transfer Table:	Motorised - Automatic Exchange
Nesting Software:	LANTEK Expert Cut II or Metalix AutoNest PRO
Nozzle Clean/Calib.	Automatic
Fume Extractor:	Optional

BLE-Pro: Laser Specs

Laser Power:	1 kW to 6kW
Cutting Head (Standard):	Precitec LightCutter (Auto focus)
Cutting Head (Optional):	Precitec ProCutter
Focusing Lenses:	150 mm

BLE-Pro: Cutting Capacities (mm)

Material \| Pwr:	1kW	2kW	3kW	4kW	6kW
Mild Steel:	12	15	18	20	25
s.Steel:	4	8	10	12	20
Alum:	3	6	8	12	20
Copper:	2	3	4	6	8
BRass	3	6	8	10	12

Read less...

To contact Performatec about Baykal BLE Pro Laser Cutting Machine use Get a quote.
