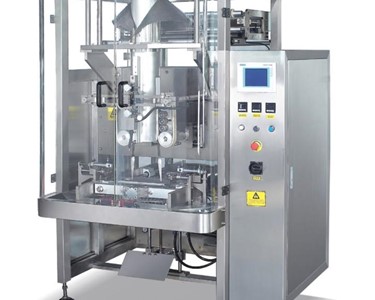

The CPBX-800 Vertical Form Fill and Seal Machine is a high-speed, user-friendly solution designed for efficient packaging operations in Brisbane, Australia.

Key Features

High-speed vertical form, fill and seal operation.
Twin Servo Drive film pull down system for flexibility and up to 45 packs per minute (product dependent).
Fully independent machine controls and PLC touch screen interface for user-friendly operation.
Automatic film tracking and photo eye film registration for reliable performance.
Designed for integration with multi head weighers and other filling devices to maximise throughput.
Quick change former assembly and date coder (included).
Optional features: Gas flush, hole slot, gusset, and thermal or impulse sealing.

Technical Specifications

Packing Speed	Max. 45 packs per minute (product dependent)
Bag Sizes	20–400 mm length, 100–300 mm width
Air Consumption	0.6 m³ at 0.8 MPa
Film Roll (Outer)	620 mm max
Power Supply	240V, 50Hz, 2.2kW
Dimensions	1250 mm (L) x 1600 mm (W) x 1700 mm (H)
Frame Structure	Fully stainless steel (standard)
Control System	PLC touch screen control
Film Drive	Twin Servo Motor film feed belts
Sealing Jaws	Pneumatic actuation

Available Options

Gas flush
Hole slot
Gusset options
Thermal or impulse sealing

Key Features

High-speed vertical form, fill and seal operation.
Twin Servo Drive film pull down system for flexibility and up to 45 packs per minute (product dependent).
Fully independent machine controls and PLC touch screen interface for user-friendly operation.
Automatic film tracking and photo eye film registration for reliable performance.
Designed for integration with multi head weighers and other filling devices to maximise throughput.
Quick change former assembly and date coder (included).
Optional features: Gas flush, hole slot, gusset, and thermal or impulse sealing.

Technical Specifications

Packing Speed	Max. 45 packs per minute (product dependent)
Bag Sizes	20–400 mm length, 100–300 mm width
Air Consumption	0.6 m³ at 0.8 MPa
Film Roll (Outer)	620 mm max
Power Supply	240V, 50Hz, 2.2kW
Dimensions	1250 mm (L) x 1600 mm (W) x 1700 mm (H)
Frame Structure	Fully stainless steel (standard)
Control System	PLC touch screen control
Film Drive	Twin Servo Motor film feed belts
Sealing Jaws	Pneumatic actuation

Available Options

Gas flush
Hole slot
Gusset options
Thermal or impulse sealing
