Track Pin Press | TTP Portable 50-200T T | Pin Pusher

Powerful, mobile tool designed for efficiently pressing track pins in railway maintenance. With its versatile 50-200 ton capacity, it ensures quick, reliable operation in demanding rail applications.

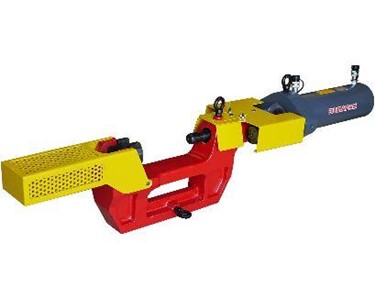

Durapac TTP Portable 50-200T Track Pin Press

The TTP-Series Pin Pusher is specially designed for tracked machines, tractors, loaders, shovels, excavators, etc. It is suitable to use with most modern machines including JCB, Caterpillar, Komatsu and Poclain manufactured track machines.

This portable track pin press makes it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts in the field or workshop.

Advantages

Safe and effective removal/installation of Track Pins, Master Pins, Bushings and Master Bushings
Reduction in labour hours
Cost-effective
Eliminates old dangerous methods
Makes field operations easier
Specifications

Tooling

Each unit is supplied with tooling.

Smooth Operation

Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.

Includes

1 x cast steel 'C' frame, 1 x double acting hydraulic cylinder, 2 x tie rod and 2 x nuts for connecting 'C’ frame and cylinder, 1 x chain lever hoist, 2 x lifting slings and eyebolts for handling, tooling sets, 20t flat jack and storage case.

Durability

The 'C’ frame is of cast steel construction and has a 'U’ cut out at the front end where the aligning adaptor is fitted.

Portability

The track link pin pusher is supplied with a robust storage case to house all components including tooling.

Double Acting Cylinder

The double acting hydraulic cylinder is made in alloy steel and has long stroke with which the master pin can be pushed or installed in one stroke. industry standard high flow couplings included.

Specifications

Model Number	Capacity (ton)	Stroke (mm)	Pressure Rating (bar)	Effective Area (cm²)	Oil Capacity (cc)	Assembly Length (mm)	Approx. Weight (kg)*
TTP-50	50	250	700	70.88	1,772	1,400	85
TTP-100	100	350	700	132.7	4,645	1,750	205
TTP-150	150	350	700	213.8	7,484	2,103	372
TTP-200	200	350	700	283.5	9,923	2,245	630

Product Features

For the safe removal and installation of Track pins, Master pins, Bushings and Master bushings
Makes field operations easier

To contact Specialised Force about Durapac Track Pin Press | TTP Portable 50-200T T | Pin Pusher use Get a quote.
