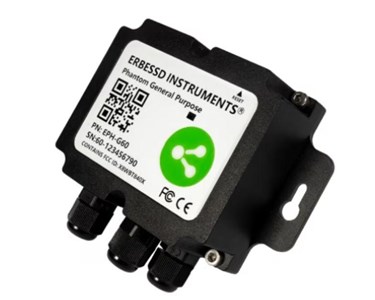

Erbessd Instruments - Bluetooth General Purpose Sensor EPH-G60

Supplier: Metromatics

Bluetooth General Purpose Sensor EPH-G60

The EPH-G60 Bluetooth General Purpose Sensor offers seamless wireless data acquisition, capturing a wide range of analog signals with ease.

Dual analog inputs for flexible signal capture.

Receive 4+ weeks from order

Overview

The Phantom Series Bluetooth General Purpose Sensor EPH-G60 is a versatile device designed to capture and transmit analog signals wirelessly. This sensor is ideal for monitoring displacement, proximity, and vibration data in industrial settings, providing secure Bluetooth connectivity over long distances.

Key Features

Dual analog inputs – Supports two independent analog channels for flexible signal capture.
Universal compatibility – Connects to proximity, displacement, speed, or vibration sensors with AC 2.5 Vpp signals.
Wireless Bluetooth transmission – BLE 5.0 connectivity for real-time data transfer to the Phantom Gateway.
Industrial protocol support – Compatible with Modbus, OPC UA, and MQTT through the Phantom Gateway.
Long-range communication – Up to 150 m line-of-sight range for dependable wireless performance.
Battery powered – Long-life lithium battery (up to 2–3 years typical) for low-maintenance installations.
Rugged IP67 housing – Dust- and water-resistant design for harsh industrial environments.
Built-in temperature sensor – Monitors internal module temperature for added diagnostic insight.
Compact design – Small form factor ideal for tight or mobile applications.
Secure and encrypted – Ensures reliable, interference-free data transmission.

Applications

The EPH-G60 is perfect for various applications, including:

Proximity and displacement measurement – Monitor mechanical movement wirelessly.
Speed and frequency monitoring – Capture analog tachometer or encoder outputs.
Machine condition monitoring – Pair with vibration and temperature data for predictive analysis.
Retrofit and test environments – Integrate existing analog sensors into a wireless network.
Research and prototyping – Gather data from a variety of analog sources without complex wiring.

Technical Specifications

The EPH-G60 is built to deliver robust performance in demanding environments.

Parameter	Specification
Model	EPH-G60
Inputs	2 × analog channels (AC 2.5 Vpp)
Communication	Bluetooth BLE 5.0 (Encrypted)
Protocols (via Gateway)	Modbus, OPC UA, MQTT
Wireless Range	Up to 150 m line-of-sight
Power Supply	1 × Lithium 1/6 D 3.7 V Battery
Battery Life	2–3 years typical
Protection Rating	IP67
Operating Temperature	–40 °C to +80 °C
Dimensions / Weight	Ø 46 mm × H 43 mm / ~160 g
Integration	Phantom Gateway 2.0 / USB Gateway, EI-Analytic, DigivibeMX

Integration & Software

The EPH-G60 integrates seamlessly with the Phantom Gateway 2.0 or USB Gateway, transmitting data to Erbessd’s analytics platforms like EI-Analytic and DigivibeMX for advanced diagnostics and data visualisation.

Why Choose the EPH-G60?

The EPH-G60 is highly versatile, supporting a broad range of analog signal types. Its simple installation requires no complex wiring, and its durable, IP67-rated design ensures long-lasting performance. With local expertise from Metromatics, you receive Australian sales, setup, and technical support.

Overview

Key Features

Dual analog inputs – Supports two independent analog channels for flexible signal capture.
Universal compatibility – Connects to proximity, displacement, speed, or vibration sensors with AC 2.5 Vpp signals.
Wireless Bluetooth transmission – BLE 5.0 connectivity for real-time data transfer to the Phantom Gateway.
Industrial protocol support – Compatible with Modbus, OPC UA, and MQTT through the Phantom Gateway.
Long-range communication – Up to 150 m line-of-sight range for dependable wireless performance.
Battery powered – Long-life lithium battery (up to 2–3 years typical) for low-maintenance installations.
Rugged IP67 housing – Dust- and water-resistant design for harsh industrial environments.
Built-in temperature sensor – Monitors internal module temperature for added diagnostic insight.
Compact design – Small form factor ideal for tight or mobile applications.
Secure and encrypted – Ensures reliable, interference-free data transmission.

Applications

The EPH-G60 is perfect for various applications, including:

Proximity and displacement measurement – Monitor mechanical movement wirelessly.
Speed and frequency monitoring – Capture analog tachometer or encoder outputs.
Machine condition monitoring – Pair with vibration and temperature data for predictive analysis.
Retrofit and test environments – Integrate existing analog sensors into a wireless network.
Research and prototyping – Gather data from a variety of analog sources without complex wiring.

Technical Specifications

The EPH-G60 is built to deliver robust performance in demanding environments.

Parameter	Specification
Model	EPH-G60
Inputs	2 × analog channels (AC 2.5 Vpp)
Communication	Bluetooth BLE 5.0 (Encrypted)
Protocols (via Gateway)	Modbus, OPC UA, MQTT
Wireless Range	Up to 150 m line-of-sight
Power Supply	1 × Lithium 1/6 D 3.7 V Battery
Battery Life	2–3 years typical
Protection Rating	IP67
Operating Temperature	–40 °C to +80 °C
Dimensions / Weight	Ø 46 mm × H 43 mm / ~160 g
Integration	Phantom Gateway 2.0 / USB Gateway, EI-Analytic, DigivibeMX

Integration & Software

Why Choose the EPH-G60?

Read less...

To contact Metromatics about Erbessd Instruments Bluetooth General Purpose Sensor EPH-G60 use Get a quote.

phantom_2vpp_datasheet(0.27MB)
