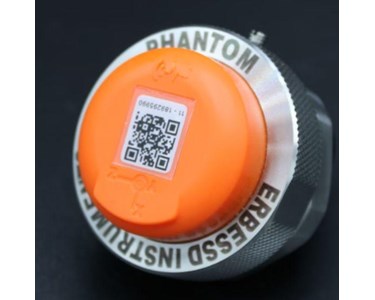

Erbessd Instruments - Phantom Series Triaxial Wireless Vibration Sensor EPH-V11E

Supplier: Metromatics

Phantom Series Triaxial Wireless Vibration Sensor EPH-V11E

The EPH-V11E Phantom Series Triaxial Wireless Vibration Sensor offers advanced monitoring capabilities for industrial environments, ensuring early detection of machine faults.

Video for Erbessd Instruments Phantom Series Triaxial Wireless Vibration Sensor EPH-V11E

Triaxial design for comprehensive machine diagnostics.

Receive 4+ weeks from order

Overview

The EPH-V11E Phantom Series Triaxial Wireless Vibration Sensor is a cutting-edge solution designed for real-time machine health monitoring in demanding industrial settings. This sensor provides precise FFT spectrum and waveform data, enabling maintenance teams to detect faults early and prevent costly downtime.

Key Features

Triaxial design – captures vibration in three axes for comprehensive machine diagnostics.
High G-range measurement – suitable for heavy-duty assets where impacts and shocks occur.
Wireless technology – Zigbee protocol ensures reliable communication in harsh environments.
Bluetooth vibration sensor mode – allows configuration and spot measurements via smartphone or tablet.
Predictive maintenance – early detection of imbalance, misalignment, looseness, and bearing wear.
Rugged IP69 housing – withstands dust, water, washdowns, and outdoor exposure.
Modbus integration – seamless connectivity with SCADA, PLC, or IIoT platforms.
Low power design – up to 100,000 measurements per battery, with sleep and wake-on-vibration functionality.

Applications

The EPH-V11E is ideal for use in:

Pumps, motors, fans, and compressors – detect faults before breakdown.
Gearboxes and conveyors – monitor gear mesh and bearing health in mining and manufacturing.
Water and wastewater facilities – deploy as a remote vibration sensor in pump stations.
HVAC systems – optimise reliability in chillers, fans, and blowers.
Heavy industry and mining – suited for high-shock environments.

Technical Specifications

Below are the detailed specifications of the EPH-V11E sensor:

Specification	Details
Sensor type	MEMS Triaxial Accelerometer
Resolution	240 µg (X, Y, Z)
Frequency range	0.5 Hz to 10 kHz (X, Y axes), 0.5 Hz to 5.1 kHz (Z axis)
Dynamic range	±8 g / ±16 g / ±32 g
Spectral noise density	630 µg/vHz at 10 Hz
Sample rate	Up to 25,600 Hz (single-axis) / 12,800 Hz (triaxial)
Recording time	1–16 seconds (triaxial) or up to 48 seconds (single-axis)
Connectivity	Zigbee 2.4 GHz, Bluetooth BLE 5.0
Transmission power	–4 dBm to +8 dBm (configurable)
Operating distance	Up to 100 m line of sight*
Compatibility	iOS & Android (WiSER®Vibe, Phantom Manager), PC (DigivibeMX, Phantom Manager)
Enclosure	ABS and stainless steel housing, IP69 rated
Dimensions	47 × 33 mm
Weight	185 g
Mounting	1/4-28 UNF fastener
Operating temperature	–40 °C to +80 °C
Power supply	Lithium CR2477 coin-cell battery
Battery life	Up to 65,000 measurements

*In ideal environments with no competing signals or obstructions.

Why Choose the EPH-V11E?

The EPH-V11E offers a complete monitoring solution with WiFi-enabled connectivity via the Phantom Gateway, Zigbee communication, and Bluetooth setup. It is designed to withstand harsh Australian mining, water utility, and manufacturing conditions, ensuring reliability and performance. Metromatics provides local sales, service, and technical support across Australia, ensuring fast response and long-term reliability.

Overview

Key Features

Triaxial design – captures vibration in three axes for comprehensive machine diagnostics.
High G-range measurement – suitable for heavy-duty assets where impacts and shocks occur.
Wireless technology – Zigbee protocol ensures reliable communication in harsh environments.
Bluetooth vibration sensor mode – allows configuration and spot measurements via smartphone or tablet.
Predictive maintenance – early detection of imbalance, misalignment, looseness, and bearing wear.
Rugged IP69 housing – withstands dust, water, washdowns, and outdoor exposure.
Modbus integration – seamless connectivity with SCADA, PLC, or IIoT platforms.
Low power design – up to 100,000 measurements per battery, with sleep and wake-on-vibration functionality.

Applications

The EPH-V11E is ideal for use in:

Pumps, motors, fans, and compressors – detect faults before breakdown.
Gearboxes and conveyors – monitor gear mesh and bearing health in mining and manufacturing.
Water and wastewater facilities – deploy as a remote vibration sensor in pump stations.
HVAC systems – optimise reliability in chillers, fans, and blowers.
Heavy industry and mining – suited for high-shock environments.

Technical Specifications

Below are the detailed specifications of the EPH-V11E sensor:

Specification	Details
Sensor type	MEMS Triaxial Accelerometer
Resolution	240 µg (X, Y, Z)
Frequency range	0.5 Hz to 10 kHz (X, Y axes), 0.5 Hz to 5.1 kHz (Z axis)
Dynamic range	±8 g / ±16 g / ±32 g
Spectral noise density	630 µg/vHz at 10 Hz
Sample rate	Up to 25,600 Hz (single-axis) / 12,800 Hz (triaxial)
Recording time	1–16 seconds (triaxial) or up to 48 seconds (single-axis)
Connectivity	Zigbee 2.4 GHz, Bluetooth BLE 5.0
Transmission power	–4 dBm to +8 dBm (configurable)
Operating distance	Up to 100 m line of sight*
Compatibility	iOS & Android (WiSER®Vibe, Phantom Manager), PC (DigivibeMX, Phantom Manager)
Enclosure	ABS and stainless steel housing, IP69 rated
Dimensions	47 × 33 mm
Weight	185 g
Mounting	1/4-28 UNF fastener
Operating temperature	–40 °C to +80 °C
Power supply	Lithium CR2477 coin-cell battery
Battery life	Up to 65,000 measurements

*In ideal environments with no competing signals or obstructions.

Why Choose the EPH-V11E?
