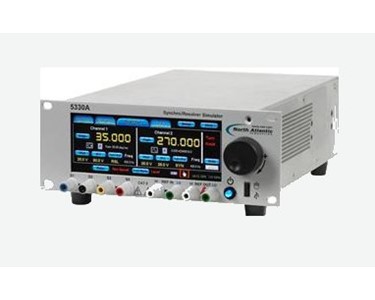

The 5330A is a rack mount/bench-top programmable Synchro/Resolver simulation instrument featuring integrated touch-screen controls and input terminals.

This second generation simulator represents a major step forward by using digital technology to produce synchro and resolver outputs. Improved flexibility is provided by two fully independent outputs that can be used to simultaneously simulate two separate Synchro or Resolver signals, or can be combined to operate as two-speed outputs. The versatility of this device has been substantially increased by incorporating dynamic modes that enable the user to test servo systems under various simulated stringent field conditions.

Each channel can be independently programmed for specific dynamic mode operations, including Rotation (continuous or start-stop), Sine, Square & Ramp. In addition, IEEE-488, USB, and Ethernet interfaces have been added to extend remote operation capabilities.

As an option, a programmable 6 VA internal reference supply can be specified.  This self-calibrating unit is furnished with factory installed rubber feet and foldaway tilt stand, and can also be installed in a 3.5” half rack slot. Using optional rack mounting brackets, the 5330A may be installed as a single unit in a full rack slot or as a tandem mount of two units in a full rack slot.

Features of this unit include;

• up to two channels
• high resolution touch-screen
• optional reference supply
• resolution: 0.001°
• Accuracy: up to ±0.003°
• two display modes: 0-360º or ±180°
• programmable display options
• output voltages from 1 – 90 VLL, 47 Hz to 10 KHz
• up to 6 VA power output per channel
• ethernet
• IEEE-488
• USB & parallel ports
• CE compliant
• LXI compatible
