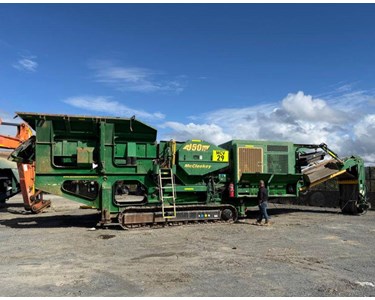

The 2020 McCloskey J50 V2 is a heavy-duty, track-mounted mobile jaw crusher built for quarrying, mining, and recycling applications. It features the largest bolted jaw in its class (50" x 29") and a 350 HP engine, making it a high-capacity machine designed to process large materials fast.Core

Specifications:
- Jaw Opening: 1270 mm x 735 mm (50" x 29")
- Engine: 350 HP (261 kW) Diesel engine
- Operating Weight: ~51,000 kg (112,436 lbs)
- Production Capacity: Up to 500 tonnes per hour (tph)
- Stockpile Height (Main): 4.25 m (13' 11")

Key Features
- Live Pre-Screen: The heavy-duty double-deck pre-screen automatically adjusts its speed using a level sensor to keep the jaw fed, minimising wear and allowing for the removal of sized product on the side conveyor.
- Hydraulic Adjust: Fully hydraulic Closed Side Setting (CSS) adjustments allow you to change the crusher's output size easily, with a relief system that prevents damage from uncrushable objects.
- Unrestricted Flow: The material path widens continuously, which eliminates bridging and material jams.
- Transportation: Features hydraulically folding hoppers and stockpiling conveyors so it can be moved between job sites efficiently.
Transport DimensionsLength: 14.91 m (48' 11")Width: 3.00 m (9' 10")Height: 3.47 m (11' 5")
