High-Precision GNSS/INS VN-210

The VN-210 is a high-precision GNSS/INS system designed for dynamic platforms, offering real-time position, velocity, and attitude data in both rugged and embedded formats.

Real-time position, velocity, and attitude data for dynamic platforms.

Receive 2-4 weeks from order

Overview

The VectorNav High-Precision GNSS/INS VN-210 is engineered to deliver accurate navigation data in real-time, making it ideal for systems that experience movement, vibration, and speed changes. Available in both rugged and embedded versions, the VN-210 is versatile enough to be integrated into various applications, including UAVs, robotics, and marine platforms.

Key Features

Navigation Outputs: Provides position, velocity, and attitude data for effective control and tracking.
High-Rate Attitude Output: Offers fast updates for stabilisation and closed-loop control.

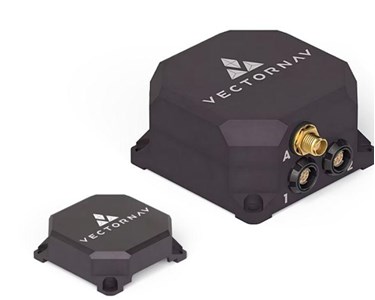

Two Form Factors: Available as a rugged housed VN-210 or an embedded VN-210E for flexible integration.
Built for Real Motion: Designed to handle dynamic platforms and changing environments.
Integration-Friendly: Compatible with UAV, robotics, marine, and industrial applications.

Technical Specifications

The VN-210 is available in two versions, each with specific technical specifications to suit different needs.

Parameter	VN-210 (Rugged)	VN-210E (Embedded)
Outputs	Coupled position, velocity, and attitude solution	Coupled position, velocity, and attitude solution
Attitude Output Rate	Up to 400 Hz (user configurable)	Up to 400 Hz (user configurable)
Heading (INS)	0.05° to 0.1° (1s, dynamic)	0.05° to 0.1° (1s, dynamic)
Pitch / Roll (INS)	0.015° (1s, dynamic)	0.015° (1s, dynamic)
Heading (Magnetic)	2.0° RMS (with correct conditions and calibration)	2.0° RMS (with correct conditions and calibration)
Horizontal Position Accuracy	1.0 m RMS	1.0 m RMS
Vertical Position Accuracy	1.5 m RMS	1.5 m RMS
Operating Temperature	-40 °C to +85 °C	-40 °C to +85 °C
Input Voltage	12 to 34 V	3.2 to 3.5 V
Current Draw	110 mA @ 24 V	420 mA @ 3.3 V
Power Consumption	< 2.7 W	< 1.5 W
Dimensions	56 x 56 x 31 mm	31 x 31 x 12 mm
Weight	155 g	14 g

Applications

The VN-210 is designed to support a wide range of applications by providing reliable navigation data for dynamic systems.

UAVs & Drones: Provides flight navigation support and stabilisation for dynamic platforms.
Robotics & Autonomous Systems: Offers navigation support and stable attitude data for control and guidance.
Marine & Surface Platforms: Supplies platform attitude and motion data for stabilised sensors and alignment.
Industrial & Fielded Systems: Delivers navigation and motion data for moving machines and vehicles.

Why Choose the VN-210?

The VN-210 is not just about raw sensor data; it provides a stable navigation output that can be used immediately. This system is perfect for dynamic platforms requiring continuous attitude solutions and GNSS-aided navigation. Additionally, sourcing from Metromatics ensures access to local technical support and integration expertise, enhancing the VN-210's deployment in your systems.

Overview

Key Features

Navigation Outputs: Provides position, velocity, and attitude data for effective control and tracking.
High-Rate Attitude Output: Offers fast updates for stabilisation and closed-loop control.
Two Form Factors: Available as a rugged housed VN-210 or an embedded VN-210E for flexible integration.
Built for Real Motion: Designed to handle dynamic platforms and changing environments.
Integration-Friendly: Compatible with UAV, robotics, marine, and industrial applications.

Technical Specifications

The VN-210 is available in two versions, each with specific technical specifications to suit different needs.

Parameter	VN-210 (Rugged)	VN-210E (Embedded)
Outputs	Coupled position, velocity, and attitude solution	Coupled position, velocity, and attitude solution
Attitude Output Rate	Up to 400 Hz (user configurable)	Up to 400 Hz (user configurable)
Heading (INS)	0.05° to 0.1° (1s, dynamic)	0.05° to 0.1° (1s, dynamic)
Pitch / Roll (INS)	0.015° (1s, dynamic)	0.015° (1s, dynamic)
Heading (Magnetic)	2.0° RMS (with correct conditions and calibration)	2.0° RMS (with correct conditions and calibration)
Horizontal Position Accuracy	1.0 m RMS	1.0 m RMS
Vertical Position Accuracy	1.5 m RMS	1.5 m RMS
Operating Temperature	-40 °C to +85 °C	-40 °C to +85 °C
Input Voltage	12 to 34 V	3.2 to 3.5 V
Current Draw	110 mA @ 24 V	420 mA @ 3.3 V
Power Consumption	< 2.7 W	< 1.5 W
Dimensions	56 x 56 x 31 mm	31 x 31 x 12 mm
Weight	155 g	14 g

Applications

The VN-210 is designed to support a wide range of applications by providing reliable navigation data for dynamic systems.

UAVs & Drones: Provides flight navigation support and stabilisation for dynamic platforms.
Robotics & Autonomous Systems: Offers navigation support and stable attitude data for control and guidance.
Marine & Surface Platforms: Supplies platform attitude and motion data for stabilised sensors and alignment.
Industrial & Fielded Systems: Delivers navigation and motion data for moving machines and vehicles.

Why Choose the VN-210?
