Name: Vertical Strip Packaging Machine 5000/90
Price: 30000 AUD
Availability: InStock

Up to 250 cycles/min

Size Range	min.	max.
A	20	110
C	Programmable

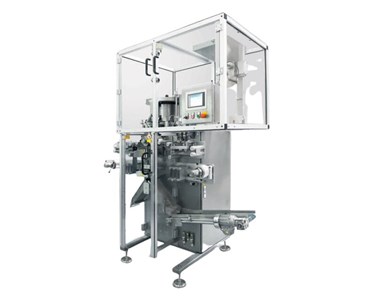

Vertical, four-side sealing/pouching machine for tablets, capsules and effervescent tablets.
Speed up to 250 cycles/min, depending on product size, for up to 2 product rows. The number of rows depends on the product and required effective production speed, which influence the machine foil width range.
Suitable for all heat-sealable films except pure polyethylene, including cellophane, aluminium, coated paper, laminates and combinations of these materials.
Packaging material feeds from two reels through a film unwinding unit directly into the sealing station.
Easy temperature and pressure setting unit.

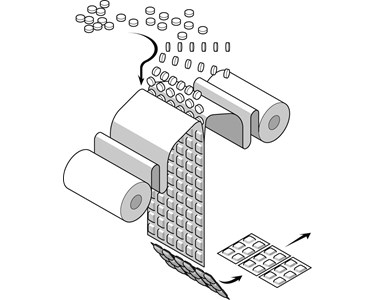

Product infeed transfers products correctly oriented and synchronised with the sealing rollers. Products pass directly into the roller cavities and are packed airtight between two webs.

Basic machine includes mechanical parts, excluding format-based parts, basic electrical components including separate temperature controls for the sealing rollers, and complete guarding.
Designed and built in compliance with GMP regulations, with a surface finish in accordance with pharmaceutical requirements.
Cantilever structure provides complete, easy access to all machine parts.
All format parts allow easy, quick changeover.
Compact design and complete machine accessibility allow easy maintenance and cleaning.
