ATS Automatic Transfer Switch Three Phase ...

ATS Automatic Transfer Switch Three Phase 250AMP Price Guide: $1,900

Supplier: Able Sales Australia

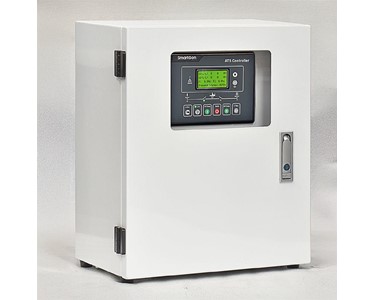

ATS Automatic Transfer Switch Three Phase 250AMP

This three-phase automatic transfer switch enables seamless switching between mains supply and backup generator power, offering robust control and protection for your electrical systems.

Key Features and Functionality

Enables safe, automatic switching between mains supply (primary source) and standby generator supply (secondary source)
Prevents simultaneous connection of both sources, ensuring electrical safety
Continuously monitors incoming mains voltage and initiates generator start-up during power failure or brownout
Transfers load to generator once stable supply is detected, and reverses process when mains power is restored

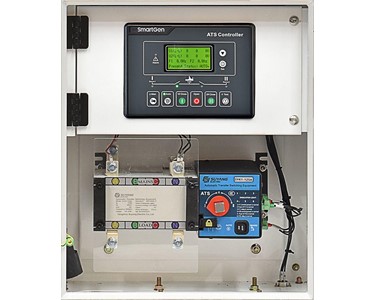

Smartgen HAT600 ATS controller provides accurate 2-way voltage detection (3 phase, 1 phase, or 2 phase) and monitors for abnormal voltage conditions
Transfer and generator start/stop delay settings for customisable performance
Modular steel chassis with key lockable cabinet and padlock isolation for enhanced security
Compact structure for easy mounting and maintenance

Specifications

Power	250 AMP
Phase / Power Factor	Three Phase
Starter System	2 Wire Trigger / Auto / Manual
Controller	Smartgen HAT600 ATS Controller
Battery	12V Charger
Chassis	Modular Steel, Key Lockable Cabinet, Padlock Isolation
Weight	32 kg
Dimensions (L x W x H)	55 x 31 x 64 cm
Shipping Weight	37 kg
Shipping Dimensions (L x W x H)	60 x 36 x 69 cm

Switching & Control Details

Switching Delay: 0-60 seconds (upon mains loss)
Generator Start Delay: 0-90 seconds (generator start/stop)
Controller can detect and manage abnormal voltage (loss of power, over or under voltage) and delay transfer as required

Construction & Security

Sturdy modular steel shell
Key-lockable door and padlock isolation for enhanced access control
Designed for easy installation and maintenance

To contact Able Sales Australia about ATS Automatic Transfer Switch Three Phase 250AMP use Get a quote.

Key Features and Functionality

Enables safe, automatic switching between mains supply (primary source) and standby generator supply (secondary source)
Prevents simultaneous connection of both sources, ensuring electrical safety
Continuously monitors incoming mains voltage and initiates generator start-up during power failure or brownout
Transfers load to generator once stable supply is detected, and reverses process when mains power is restored
Smartgen HAT600 ATS controller provides accurate 2-way voltage detection (3 phase, 1 phase, or 2 phase) and monitors for abnormal voltage conditions
Transfer and generator start/stop delay settings for customisable performance
Modular steel chassis with key lockable cabinet and padlock isolation for enhanced security
Compact structure for easy mounting and maintenance

Specifications

Power	250 AMP
Phase / Power Factor	Three Phase
Starter System	2 Wire Trigger / Auto / Manual
Controller	Smartgen HAT600 ATS Controller
Battery	12V Charger
Chassis	Modular Steel, Key Lockable Cabinet, Padlock Isolation
Weight	32 kg
Dimensions (L x W x H)	55 x 31 x 64 cm
Shipping Weight	37 kg
Shipping Dimensions (L x W x H)	60 x 36 x 69 cm

Switching & Control Details

Switching Delay: 0-60 seconds (upon mains loss)
Generator Start Delay: 0-90 seconds (generator start/stop)
Controller can detect and manage abnormal voltage (loss of power, over or under voltage) and delay transfer as required

Construction & Security

Sturdy modular steel shell
Key-lockable door and padlock isolation for enhanced access control
Designed for easy installation and maintenance

Read less...

To contact Able Sales Australia about ATS Automatic Transfer Switch Three Phase 250AMP use Get a quote.

Controller-HAT600_V2.0_en-8(1.70MB)
