Caterpillar 65kVA Standby Generator In ...

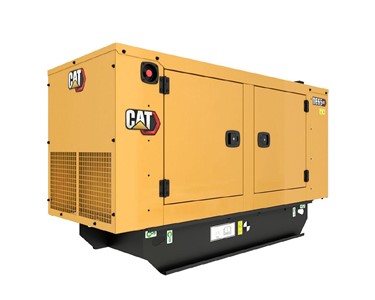

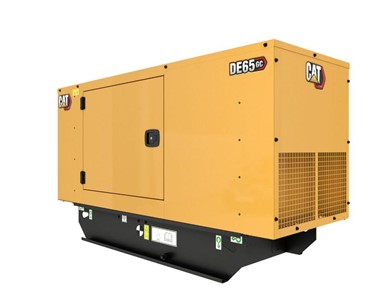

Caterpillar - 65kVA Standby Generator In Canopy

Supplier: Able Power

65kVA Standby Generator In Canopy

1/2

This high-performance standby generator features a Caterpillar diesel engine and robust canopy, offering reliable backup power for commercial and industrial applications.

Key Features:

Powered by Caterpillar (CAT) C3.3 inline 4-stroke diesel engine
A-Frame alternator with user-friendly GCCP 1.1 control panel
Maximum standby rating of 65kVA (52kW)
Three-phase output, 415V, 50Hz, 0.8 power factor
Up to 90 Amps per phase (prime), 66.1 dBA noise at 7m (75% load)
92-litre fuel tank for 8.14 hours running at 75% load
Mine site-ready: bunding and emergency stop
Hardwired to main circuit breaker, over-current protection
Lockable chassis with sound deadening, weather-resistant powder coating, galvanised steel
Operates in ambient temperatures up to 55°C
Supplied with PL444 4G LTE tracking hardware for remote monitoring
Access to over 1,000 CAT on-site service vehicles across Australia
Australian compliant, built to global emission standards

Specifications:

Standby Power	52kW / 65kVA
Output	Three Phase, 415V, 50Hz
Power Factor	0.8
Amps (Prime/Phase)	90
Voltage	415
Frequency	50 Hz
Engine Type	Cat C3.3 Inline 4-stroke Diesel
RPM	1500
Cooling Method	Water Cooled
Alternator	A-Frame
Controller	GCCP 1.1 Control Panel
Noise Level @ 7m (75% load)	66.1 dBA
Fuel Tank Capacity	92 Litres
Running Time (75% load)	8.14 Hours
Fuel Consumption (75% load)	11.3 L/hr
Weight	995 kg
Length	230 cm
Width	97 cm
Height	141 cm
Chassis	Lockable, sound deadening, weather-resistant powder coating, galvanised steel
Compliance	Australian Compliant
Working Temperature	Up to 55°C

Additional Information:

Built to global emission standards.
Warranty: 5 years standby (maximum 500 hrs/year or 2500 hours over 5 years), upgradeable to 10 years (maximum 500 hrs/year or 5000 hours).
Includes product link hardware for remote monitoring via 4G LTE.
Australian-wide service support via CAT's nationwide network.

To contact Able Power about Caterpillar 65kVA Standby Generator In Canopy use Get a quote.

Key Features:

Powered by Caterpillar (CAT) C3.3 inline 4-stroke diesel engine
A-Frame alternator with user-friendly GCCP 1.1 control panel
Maximum standby rating of 65kVA (52kW)
Three-phase output, 415V, 50Hz, 0.8 power factor
Up to 90 Amps per phase (prime), 66.1 dBA noise at 7m (75% load)
92-litre fuel tank for 8.14 hours running at 75% load
Mine site-ready: bunding and emergency stop
Hardwired to main circuit breaker, over-current protection
Lockable chassis with sound deadening, weather-resistant powder coating, galvanised steel
Operates in ambient temperatures up to 55°C
Supplied with PL444 4G LTE tracking hardware for remote monitoring
Access to over 1,000 CAT on-site service vehicles across Australia
Australian compliant, built to global emission standards

Specifications:

Standby Power	52kW / 65kVA
Output	Three Phase, 415V, 50Hz
Power Factor	0.8
Amps (Prime/Phase)	90
Voltage	415
Frequency	50 Hz
Engine Type	Cat C3.3 Inline 4-stroke Diesel
RPM	1500
Cooling Method	Water Cooled
Alternator	A-Frame
Controller	GCCP 1.1 Control Panel
Noise Level @ 7m (75% load)	66.1 dBA
Fuel Tank Capacity	92 Litres
Running Time (75% load)	8.14 Hours
Fuel Consumption (75% load)	11.3 L/hr
Weight	995 kg
Length	230 cm
Width	97 cm
Height	141 cm
Chassis	Lockable, sound deadening, weather-resistant powder coating, galvanised steel
Compliance	Australian Compliant
Working Temperature	Up to 55°C

Additional Information:

Built to global emission standards.
Warranty: 5 years standby (maximum 500 hrs/year or 2500 hours over 5 years), upgradeable to 10 years (maximum 500 hrs/year or 5000 hours).
Includes product link hardware for remote monitoring via 4G LTE.
Australian-wide service support via CAT's nationwide network.

Read less...

To contact Able Power about Caterpillar 65kVA Standby Generator In Canopy use Get a quote.
