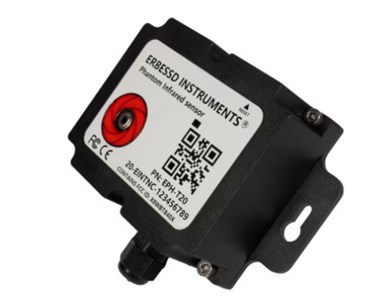

Erbessd Instruments - Wireless Infrared Temperature Sensor EPH-T20

Supplier: Metromatics

Wireless Infrared Temperature Sensor EPH-T20

The EPH-T20 is a wireless infrared temperature sensor designed for non-contact surface monitoring, ensuring accurate and reliable data collection.

Non-contact temperature measurement with wide range.

Receive 1-3 days from order

Overview

The EPH-T20 Wireless Infrared Temperature Sensor from Erbessd Instruments is a cutting-edge solution for non-contact temperature measurement. This compact sensor utilizes infrared technology to accurately detect heat variations on equipment surfaces, making it ideal for environments where traditional contact sensors are impractical. It seamlessly integrates with the Phantom wireless condition monitoring system, providing real-time data for predictive maintenance.

Key Features

Wireless infrared temperature monitoring – enables non-contact measurement, perfect for rotating or inaccessible components.
Wide temperature range – capable of measuring from –70 °C to +380 °C.
High accuracy and stability – ensures dependable results even in harsh industrial environments.
Rugged IP67 design – offers full protection against dust and moisture.
Industrial connectivity – supports Modbus, OPC UA, and MQTT for easy integration with SCADA, PLC, or IoT platforms.
Bluetooth BLE 5.0 communication – provides a secure, low-power wireless link to the Phantom Gateway.
Battery powered – features a long-life replaceable battery allowing for 12,000+ measurements under standard operation.
Simple configuration – quick setup via the Phantom Manager mobile app.
Part of the Phantom ecosystem – easily combines with vibration, current, or thermal sensors for comprehensive condition monitoring.

Applications

The EPH-T20 is versatile and can be used in various applications, including:

Rotating equipment – such as bearings, couplings, and drive shafts where contact sensors are unsuitable.
Electrical systems – monitoring panel temperatures, breaker contacts, or busbars.
Motors, pumps, and compressors – tracking surface heat trends for predictive maintenance.
Production lines and conveyors – monitoring rollers, heaters, or friction surfaces.
Process plants – providing non-intrusive temperature readings for pipelines and heat exchangers.

Technical Specifications

Below are the detailed technical specifications for the EPH-T20 sensor:

Parameter	Specification
Model	EPH-T20
Measurement Range	–70 °C to +380 °C
Accuracy	±1 °C
Connectivity	Bluetooth BLE 5.0 (2.4 GHz)
Protocols	Modbus, OPC UA, MQTT
Power Supply	Replaceable batteries (up to 12,000 measurements)
Enclosure Rating	IP67
Housing Material	Nylamid / Aluminium
Operating Temperature (device)	–40 °C to +80 °C
Integration	Phantom Gateway, EI-Analytic, DigivibeMX, Phantom Manager

Integration & Software

The EPH-T20 integrates seamlessly with the Phantom Wireless Condition Monitoring Ecosystem, allowing you to combine non-contact temperature data with other measurements for a comprehensive view of equipment health. Key integration features include:

Phantom Gateway 2.0 / USB Gateway – transfers data to cloud or SCADA systems securely.
EI-Analytic – visualise temperature trends, set alarms, and analyse performance over time.
DigivibeMX – combine temperature and vibration analysis for in-depth diagnostics.
Phantom Manager – configure sensors, calibrate, and pair devices using Bluetooth.

Why Choose the EPH-T20?

The EPH-T20 offers non-contact and maintenance-free operation, ensuring reliable readings without mechanical wear. Its industrial-grade performance is designed for demanding environments, and its flexible integration capabilities make it compatible with a wide range of industrial protocols. With local Australian support from Metromatics, you can count on expert sales, setup, and technical assistance.
