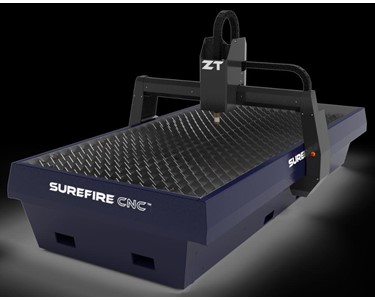

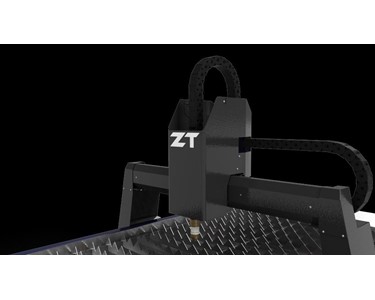

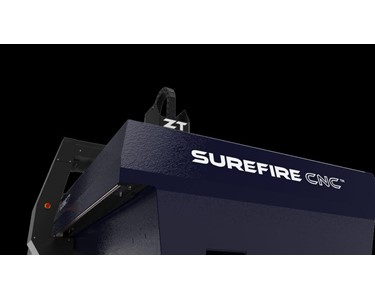

Surefire CNC - ZT24 CNC Plasma Cutting Table Get latest price

Read more...

To contact QMT Machinery Pty Ltd about Surefire CNC ZT24 CNC Plasma Cutting Table use Get a quote.

Features

• Priced from $37,200 (or $29/day on finance) depending on plasma option
• 1220 x 2440mm cutting area, to fit full-size “4ft x 8ft” sheets
• Flat bed design for easy material loading
• Waterbed included for cost-effective fume control and heat related warpage control
• Plasma power-source options up to 35mm steel capacity

Specifications

• Cutting Area / Max Sheet Size 1220 x 2440mm
• Travel Speed Up to 20,000mm/min
• Drive System X + Y Axis Helical rack & pinion, twin gantry motors
• Drive System Z Axis Precision ball & screw
• Drive MotorsHigh Performance USA-made Servo
• Z Axis Travel Height 200mm
• Table Construction Steel
• Table Capacity6,280kg
• Input Power 240V 10 Amp

Why choose this product

• 100% Australian - Designed, refined, and tested in Australia with over 10 years of R&D invested in every ZT table.
• Super Simple Software - We reckon we have one of the easiest-to-use software packages in the CNC Plasma field.
• Local Support - Market-leading products backed up by our local support team
• 2 Year Warranty - CNC Plasma specialists with over 40 years industry experience

Read less...
