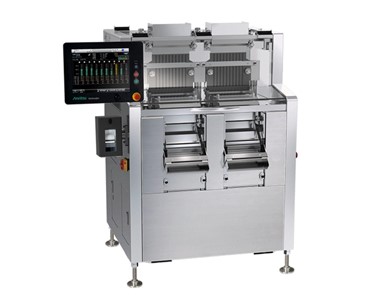

Anritsu - Capsule Checkweigher For Pharmaceutical Industries

Supplier: J.L.Lennard

Capsule Checkweigher For Pharmaceutical Industries

100% capsule weighing solution with world's highest-level precision and reliability.

Receive 1-3 days from order

Anritsu's high precision Capsule Checkweighers weigh 100% capsules reliably at high speed.
It is equipped with the newly developed capsule handling mechanisms which ensure highly reliable capsule feeding, weighing, and rejection. Anritsu's force balance weighing technology provides the industry's highest weighing accuracy of ± 0.5 mg, contributing to more advanced quality control and improved production efficiency.

Specifications

Type	KWS9002AP10	KWS9002AP20	KWS9002AP30
Weighing range	2 to 2000 mg
Scale interval	0.1 mg
Maximum throughput^*1	75,000 capsules/h	150,000 capsules/h	230,000 capsules/h
Lanes	10 lanes	20 lanes	30 lanes
Maximum accuracy (3s)^*1	+/-0.5 mg
Display	15-inch color TFT LCD
Operation method	Touch panel + Key (Start, Stop, and Home are direct push buttons)
Indication range	2045.0 mg
Preset memory	Maximum 50
Classification^*2	4 ways (overweight/correct weight/underweight/unclassified)
Product size	Capsule No. 000 to 5
Power requirements^*3	100 Vac to 115 Vac +10% -15%, single phase, 50/60 Hz, rush current 74 A (typ) (90 ms or less)
Power consumption	500 VA	700 VA	1000 VA
Air requirements	0.5 MPa to 0.9 MPa, 200 l/min [A.N.R.]; Air supply port: nylon tube of 8 mm dia.
Mass	350 kg	500 kg	700 kg
Environmental conditions	15°C to 30°C (variation not to exceed 1°C/h to maintain accuracy), relative humidity 30% to 70% (no-condensing)
Protection class	IP30 (IP50 for weighcell)
Exterior	Stainless steel (SUS304)
Data output	USB port (USB 2.0), Ethernet interface (10BASE=T, 100BASE-TX)

1: Maximum throughput and maximum accuracy may vary depending on capsule size, filling content and quantity.
2: A rejection gate is installed per 10 lanes.
3: 120 Vas, 200 Vac to 240 Vac are available as an option.
Note: The noise level of the checkweigher is 79 dB (A) or less.
