CHRONOS OMK Series pre-made pouch filling machine

1/6

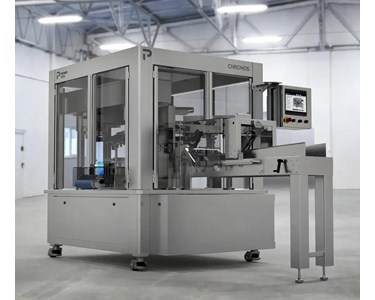

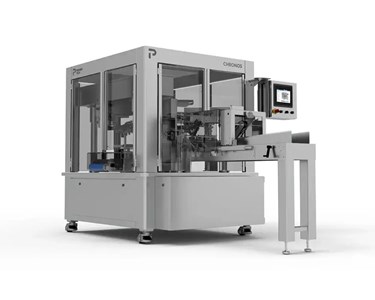

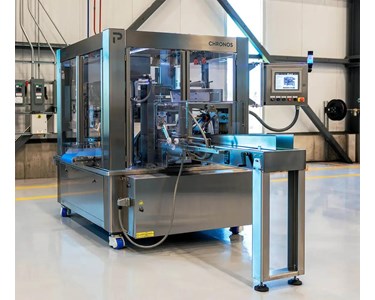

The CHRONOS OMK Series pre-made pouch filling machine packages powders, granules and free-flowing products at up to 50 pouches per minute, with quick, tool-less changeovers in about 5 minutes.

Overview

Rotary machine that picks, opens, fills and seals retail-ready pouches for food, pet food, pharmaceutical and retail manufacturers.
Handles multiple products, formats and sizes with simple changeovers for frequent SKU changes and seasonal demand shifts.
Produces high-quality seals to protect product integrity.

Specifications

Specification	Value
Brand	CHRONOS
Series	OMK
Speed	up to 50 pouches per minute (3000 per hour)*
Pouch types	flat and stand-up, including gusseted and press-to-close
Pouch materials	heat-sealable laminated materials (PET/PE/PP/Alu)
Filling weight	up to 11 lb (5 kg)
Typical footprint — Length	78.7 (2000 mm)
Typical footprint — Width	69 in (1750 mm)
Typical footprint — Height	77 in (1955 mm)
Typical footprint — Weight	3968 lb (1800 kg)
Pouch dimensions — Width	3.15 to 13.78 in (80 to 350 mm)
Pouch dimensions — Length	3.94 to 19.69 in (100 to 500 mm)
Pouch dimensions — Filling range	up to 11 lb (5,000 g)
Electrical requirements	240 V / 1Ph / 60Hz
Operating temperature	40 °F to 95 °F (5 °C to 35 °C)
Compressed air	0.6 MPa, 600 L/min
Power	Max 4.8 kW

*Depending on the application, pouch characteristics and machine configuration.

Features

Quick, tool-less changeovers in about 5 minutes reduce downtime.
Simple manual adjustments streamline setup and operating efficiency.

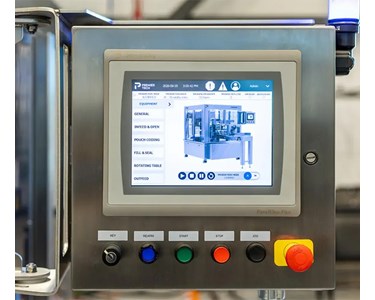

Intuitive HMI simplifies login, operation and troubleshooting, including in high-turnover environments.
Maintains filling speed with variable films.
Confirms pouches are properly open before filling, reducing waste, cleanup time and contamination risk.
Dual-stage heating and active cooling maximise seal strength and reduce rejects.
Stainless steel construction and draining design simplify sanitation between runs and support food safety compliance.
Category 3 safety architecture with fully enclosed guarding, interlocked doors and sensors prevents access to hazardous areas.
cULus-certified design accelerates equipment approval and commissioning.

Options

Product infeed and platform.
Weighing and filling solutions matched to product and production rate: multi-head, linear, volumetric and auger.
Date and lot coding.
Scoop feeder and multi-component filling.
Gas flush to preserve freshness and increase shelf-life.
Hole punch.
Integration with checkweighers and metal detectors.
Integration with Premier Tech case packing and palletising solutions.

Overview

Rotary machine that picks, opens, fills and seals retail-ready pouches for food, pet food, pharmaceutical and retail manufacturers.
Handles multiple products, formats and sizes with simple changeovers for frequent SKU changes and seasonal demand shifts.
Produces high-quality seals to protect product integrity.

Specifications

Specification	Value
Brand	CHRONOS
Series	OMK
Speed	up to 50 pouches per minute (3000 per hour)*
Pouch types	flat and stand-up, including gusseted and press-to-close
Pouch materials	heat-sealable laminated materials (PET/PE/PP/Alu)
Filling weight	up to 11 lb (5 kg)
Typical footprint — Length	78.7 (2000 mm)
Typical footprint — Width	69 in (1750 mm)
Typical footprint — Height	77 in (1955 mm)
Typical footprint — Weight	3968 lb (1800 kg)
Pouch dimensions — Width	3.15 to 13.78 in (80 to 350 mm)
Pouch dimensions — Length	3.94 to 19.69 in (100 to 500 mm)
Pouch dimensions — Filling range	up to 11 lb (5,000 g)
Electrical requirements	240 V / 1Ph / 60Hz
Operating temperature	40 °F to 95 °F (5 °C to 35 °C)
Compressed air	0.6 MPa, 600 L/min
Power	Max 4.8 kW

*Depending on the application, pouch characteristics and machine configuration.

Features

Quick, tool-less changeovers in about 5 minutes reduce downtime.
Simple manual adjustments streamline setup and operating efficiency.
Intuitive HMI simplifies login, operation and troubleshooting, including in high-turnover environments.
Maintains filling speed with variable films.
Confirms pouches are properly open before filling, reducing waste, cleanup time and contamination risk.
Dual-stage heating and active cooling maximise seal strength and reduce rejects.
Stainless steel construction and draining design simplify sanitation between runs and support food safety compliance.
Category 3 safety architecture with fully enclosed guarding, interlocked doors and sensors prevents access to hazardous areas.
cULus-certified design accelerates equipment approval and commissioning.

Options

Product infeed and platform.
Weighing and filling solutions matched to product and production rate: multi-head, linear, volumetric and auger.
Date and lot coding.
Scoop feeder and multi-component filling.
Gas flush to preserve freshness and increase shelf-life.
Hole punch.
Integration with checkweighers and metal detectors.
Integration with Premier Tech case packing and palletising solutions.

Read less...

To contact Premier Tech Systems and Automation about CHRONOS CHRONOS OMK Series pre-made pouch filling machine use Get a quote.

Download the brochure(0.73MB)
