EASYGRIND Semi-automatic Meat Grinder

Supplier: Interfood Group

1/4

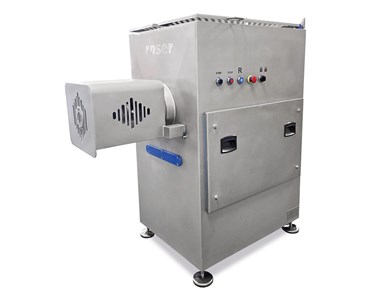

CATO EASYGRIND semi-automatic meat grinders, models PSA114, PSA130 and PSA160, feature stainless steel construction and are ideal for small and medium-scale production.

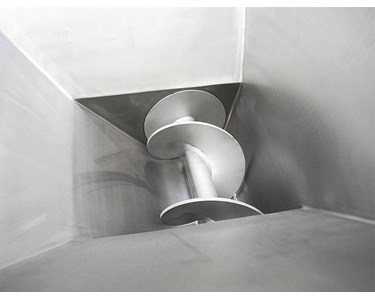

Models PSA114, PSA130 and PSA160 feature a screw design described as unique on the market, ensuring the best care for non-frozen meat (temperature up to 2°C).
Deliver a clean result without smearing and with less heating during grinding.
Ideal for small and medium-scale production.
Very solid construction, backed by CATO’s guarantee, resulting in high performance with minimal maintenance.
Fully constructed in stainless steel and in compliance with CE standards.
Control panel with push buttons, transformer, main power switch, and emergency stop system.
Safety system in the feeding hopper with a tilting protective grid and electrical interlock.
Safety lock on the grinding inlet cover prevents the cover from opening while the grinding screw motor is running.
Compatible with the installation of a sinew extractor for fresh meat (not included).

Model	Mouth size	Hopper capacity	Connection power	Nominal production	Screw motor
PSA 114 – CC00000959	Ø114mm	80 L	5,5 HP	1.000 kg/h	4 kW
PSA 130 – CC00009123	Ø130mm	80 L	7,5 HP	1.200 kg/h	5,5 kW
PSA 160 – CC00009124	Ø160mm	115 L	15 HP	2.000 kg/h	11 kW

Models PSA114, PSA130 and PSA160 feature a screw design described as unique on the market, ensuring the best care for non-frozen meat (temperature up to 2°C).
Deliver a clean result without smearing and with less heating during grinding.
Ideal for small and medium-scale production.
Very solid construction, backed by CATO’s guarantee, resulting in high performance with minimal maintenance.
Fully constructed in stainless steel and in compliance with CE standards.
Control panel with push buttons, transformer, main power switch, and emergency stop system.
Safety system in the feeding hopper with a tilting protective grid and electrical interlock.
Safety lock on the grinding inlet cover prevents the cover from opening while the grinding screw motor is running.
Compatible with the installation of a sinew extractor for fresh meat (not included).

Model	Mouth size	Hopper capacity	Connection power	Nominal production	Screw motor
PSA 114 – CC00000959	Ø114mm	80 L	5,5 HP	1.000 kg/h	4 kW
PSA 130 – CC00009123	Ø130mm	80 L	7,5 HP	1.200 kg/h	5,5 kW
PSA 160 – CC00009124	Ø160mm	115 L	15 HP	2.000 kg/h	11 kW
