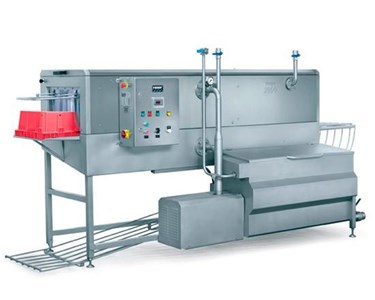

Name: TL-235 Crate Washing Tunnel
Price: 32500 AUD
Availability: InStock

up to 300 crates/hour

Optimises crate washing times in the food or meat industry and sanitises crates for small and medium production volumes.
Manual crate movement: successive crates are pushed against one another to move them through the machine.
Compact, functional design provides easy access for cleaning and maintenance, with accessible mechanical elements for maintenance and extraction.
Made of AISI 304 steel, with high chemical and mechanical resistance plastic materials used for some friction elements.
Washing with recirculated water, with the option of adding detergent, followed by rinsing with mains water.
Filtration system and hygienic tunnel body.
Height adjustable feet for levelling.
Components from leading world brands with local technical service in most countries.
Optional detergent dosing system using conductivity or a venturi.
Roser recommends following the usual chemical supplier’s instructions to achieve the best possible performance without affecting the machine’s materials.

Specification	Value
Model	TL-235
Cod.	RC00000314, RC00000234
Crate type	E2
Production	up to 300 crates/hour, depending on the type and level of soiling of the crates
Production	300 boxes/hour
Water tank	200L
Maximum dimensions of box passage	510x300mm (width x height)
Water heating	electrical resistances Code RC00000234 or direct steam Code RC00000314
Stainless steel pump	5.6 KW
Flow rate	from 200 to 700 l/min
Power: Water heating by steam Code RC00000314	5,5 Kw
Power: Heating by means of electrical resistances RC00000234	17,5 Kw
Power supply	400V – 3Ph – 50Hz
