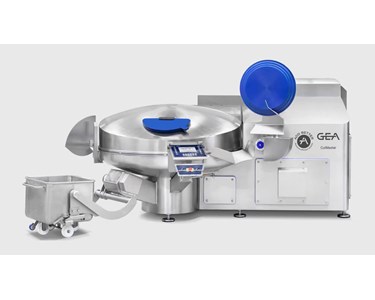

CutMaster V Vacuum-sealed Bowl Cutter

The GEA CutMaster V Gen 3 is a vacuum-sealed bowl cutter for cutting, mixing and emulsifying foods, with PLUS cutting speeds up to 162 m/s.

Up to 162 m/s cutting speed

Vacuum processing removes air to create denser, firmer emulsions with better visual appeal. It supports protein extraction and improved water binding, helps reduce jelly deposits, and can improve yield.
Minimising air inclusion enhances colour, flavour and shelf life.
TopCut VSH knife head reaches up to 162 m/s cutting speed (PLUS). Flexible cutting areas and knife configurations support coarse chopping through to very fine emulsions.
Up to 95% bowl filling level supports higher productivity per batch.
3-A certified hygienic design supports high sanitary requirements.
CutControl Pro Touch enables recipe-based automation with up to 200 programs.
InsightPartner monitors condition and performance, including uptime, alarms and maintenance suggestions. Optional monitoring tools provide machine-condition and production KPI visibility to support uptime and maintenance planning using operating data.
Optional Gen3 cooking device can cut energy use and carries a TÜV-validated Add Better label.

Meat, poultry, fish and alternative proteins.
High-quality sausage emulsions, specialty fillings, processed cheese and sauces.
Plant-based and hybrid recipes.

Bowl volume	GEA CutMaster V	High performance	PLUS
200 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	4900 rpm	5520 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	103 kW	138 kW
325 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	4100 rpm	4620 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	138 kW	172 kW
500 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	3600 rpm	4060 rpm
500 L	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	172 kW	208 kW
750 L	Max. cutting speed	132 m/s	144 m/s
	Max. no. of revolutions	2860 rpm	3120 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	208 KW	230 kW

Knife-change tools, cleaning aids, dosing and line integration solutions extend preparation-system capabilities.
Options support faster changeovers, improved handling and higher automation, streamlining preparation workflows and reducing manual handling between batches and downstream processing.

Vacuum processing removes air to create denser, firmer emulsions with better visual appeal. It supports protein extraction and improved water binding, helps reduce jelly deposits, and can improve yield.
Minimising air inclusion enhances colour, flavour and shelf life.
TopCut VSH knife head reaches up to 162 m/s cutting speed (PLUS). Flexible cutting areas and knife configurations support coarse chopping through to very fine emulsions.
Up to 95% bowl filling level supports higher productivity per batch.
3-A certified hygienic design supports high sanitary requirements.
CutControl Pro Touch enables recipe-based automation with up to 200 programs.
InsightPartner monitors condition and performance, including uptime, alarms and maintenance suggestions. Optional monitoring tools provide machine-condition and production KPI visibility to support uptime and maintenance planning using operating data.
Optional Gen3 cooking device can cut energy use and carries a TÜV-validated Add Better label.

Meat, poultry, fish and alternative proteins.
High-quality sausage emulsions, specialty fillings, processed cheese and sauces.
Plant-based and hybrid recipes.

Bowl volume	GEA CutMaster V	High performance	PLUS
200 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	4900 rpm	5520 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	103 kW	138 kW
325 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	4100 rpm	4620 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	138 kW	172 kW
500 L	Max. cutting speed	144 m/s	162 m/s
	Max. no. of revolutions	3600 rpm	4060 rpm
500 L	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	172 kW	208 kW
750 L	Max. cutting speed	132 m/s	144 m/s
	Max. no. of revolutions	2860 rpm	3120 rpm
	Reverse mixing rpm	60 - 500	60 - 500
	Motor (standard AC)	208 KW	230 kW

Knife-change tools, cleaning aids, dosing and line integration solutions extend preparation-system capabilities.
Options support faster changeovers, improved handling and higher automation, streamlining preparation workflows and reducing manual handling between batches and downstream processing.
