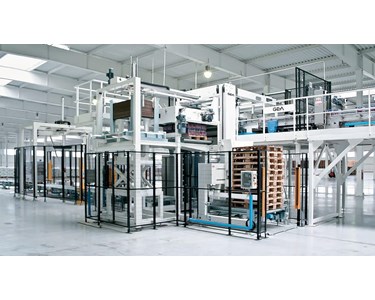

GEA - Agilis Palletizer Get latest price

Specifications

Structure and pallet lift

• High level product infeed.
• Main machine structure composed of two columns made of 5mm painted carbon steel sheet, with two dead weight sliding blocks providing the counter balance.
• Pallet lifting powered by a double motor with inverter and encoder control.
• Lift/lowering motion provided by 1¼” chains and steel wheels sliding on guides made of high resistance steel.

Layer transfer and compacting

• Double rotating bar transfers layers from the pre-formation to the deposit area.
• Bars mounted on two lateral drive chains, pulled by a motor gear reducer unit with inverter control.
• Self-centring type side compacting bars provide automatic adjustment when changing the palletisation pattern.
• Compacting bars pulled through polyurethane toothed belts by an electromechanical control unit.
• Bar contact surfaces made of low friction material.

Configuration and access

• Design allows the system to be configured simply as required.
• Open access to all parts of the machine via a platform for easy set-up and maintenance.

To contact Interfood Group about GEA Agilis Palletizer use Get a quote.
