Evident Videoscope Solution | IPLEX One

Evident - Videoscope Solution | IPLEX One

Supplier: Evident Australia

Videoscope Solution | IPLEX One

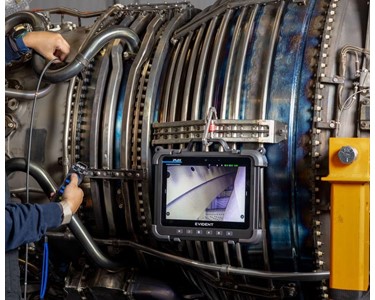

The IPLEX One Videoscope Solution is a next-generation remote visual inspection system designed for fast, accurate, and flexible inspections in demanding environments.

Breakthrough Swoptix™ multiview optics allow instant view changes and focusing without removing the probe, doubling inspection productivity.

The IPLEX One is a software-driven, modular videoscope system built for high-performance remote visual inspection (RVI) across multiple industries including aviation, power generation, oil & gas, and security. Its innovative platform consolidates software, insertion tubes, and optical tip adapters, offering performance upgrades via software without the need for hardware changes.

A Unified, Scalable Remote Visual Inspection Platform

Flexible features with modular scalability: choose what you need and unlock advanced tools like 3D modelling or measurement with software licensing.
Highly customisable setup and compatible with third-party applications and ViSOL™ workflow solution for integrated data capture and reporting.
Secure wireless operation for increased flexibility (including radio-disabled models for classified environments).

Key Features

Breakthrough Swoptix™ multiview optics: switch between near/far, direct/side views instantly without removing the scope.
3DAssist™ modelling: exclusive software for creating detailed 3D images from a single pathway, no stereo tip required.
Full-frame, high-resolution imaging and instant measurements within a single interface.
Split-screen viewing for visual comparison and measurement overlays.
Built-in wireless remote operation for ergonomic, portable inspection workflows.
All-weather, rugged design, with MIL-STD & IP ratings, anti-reflective 10-inch touchscreen, and reinforced insertion tube.

Specifications

Scope Diameter	4.0 mm or 6.0 mm
Scope Lengths	2.0 m, 3.0 m, 3.5 m, 5.0 m, 7.5 m, 10.0 m
Optical Adapter Types	Multiple: Forward, Side, Multiview, Swoptix for 3D measurement
Field of View	60° to 120° (depending on adapter)
Illumination	Laser Diode, White LED, UV LED (365nm), IR LED (950nm)
Articulation Angles	130° – 180° (all-way, depending on model)
Monitor	10.1" WUXGA (1920 × 1200), high-contrast, daylight-readable touchscreen
Connectivity	USB-C ports, HDMI 2.0, Wi-Fi, Bluetooth 5.2
Recording Media	Internal SSD (256GB), USB flash memory
Power	Li-ion batteries for main unit/tablet; AC supply 100–240V
Operating Temperature	Insertion tube: -25°C to 100°C (air); Tablet: -21°C to 49°C (air)
Weight (System incl. Scope)	Approx. 6.4–7.1 kg depending on tube length

Software Applications

ViSOL™: Cloud-based workflow solution for efficient inspection management, analytics, and collaboration.
3DAssist™: Advanced 3D modelling for improved RVI precision and speed.

Reliability and Support

Impact and vibration resistant, MIL-STD drop-tested, IP-rated for dust and water.
Ergonomic design for portable, long-shift use.
Global support network, with available training and maintenance services.

To contact Evident Australia about Evident Videoscope Solution | IPLEX One use Get a quote.

A Unified, Scalable Remote Visual Inspection Platform

Flexible features with modular scalability: choose what you need and unlock advanced tools like 3D modelling or measurement with software licensing.
Highly customisable setup and compatible with third-party applications and ViSOL™ workflow solution for integrated data capture and reporting.
Secure wireless operation for increased flexibility (including radio-disabled models for classified environments).

Key Features

Breakthrough Swoptix™ multiview optics: switch between near/far, direct/side views instantly without removing the scope.
3DAssist™ modelling: exclusive software for creating detailed 3D images from a single pathway, no stereo tip required.
Full-frame, high-resolution imaging and instant measurements within a single interface.
Split-screen viewing for visual comparison and measurement overlays.
Built-in wireless remote operation for ergonomic, portable inspection workflows.
All-weather, rugged design, with MIL-STD & IP ratings, anti-reflective 10-inch touchscreen, and reinforced insertion tube.

Specifications

Scope Diameter	4.0 mm or 6.0 mm
Scope Lengths	2.0 m, 3.0 m, 3.5 m, 5.0 m, 7.5 m, 10.0 m
Optical Adapter Types	Multiple: Forward, Side, Multiview, Swoptix for 3D measurement
Field of View	60° to 120° (depending on adapter)
Illumination	Laser Diode, White LED, UV LED (365nm), IR LED (950nm)
Articulation Angles	130° – 180° (all-way, depending on model)
Monitor	10.1" WUXGA (1920 × 1200), high-contrast, daylight-readable touchscreen
Connectivity	USB-C ports, HDMI 2.0, Wi-Fi, Bluetooth 5.2
Recording Media	Internal SSD (256GB), USB flash memory
Power	Li-ion batteries for main unit/tablet; AC supply 100–240V
Operating Temperature	Insertion tube: -25°C to 100°C (air); Tablet: -21°C to 49°C (air)
Weight (System incl. Scope)	Approx. 6.4–7.1 kg depending on tube length

Software Applications

ViSOL™: Cloud-based workflow solution for efficient inspection management, analytics, and collaboration.
3DAssist™: Advanced 3D modelling for improved RVI precision and speed.

Reliability and Support

Impact and vibration resistant, MIL-STD drop-tested, IP-rated for dust and water.
Ergonomic design for portable, long-shift use.
Global support network, with available training and maintenance services.

Read less...

To contact Evident Australia about Evident Videoscope Solution | IPLEX One use Get a quote.
